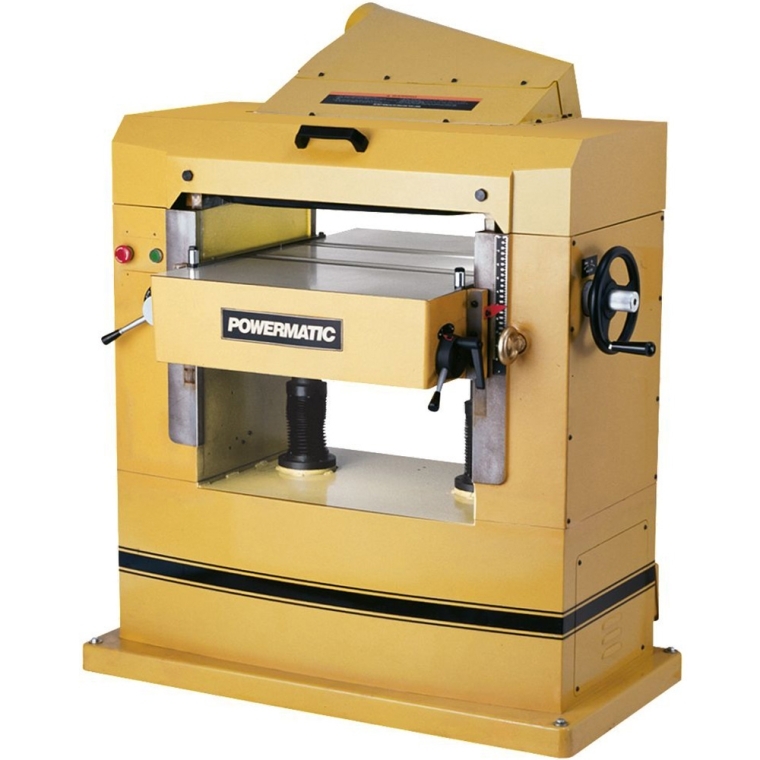

Powermatic 201HH, 22'' Planer, 7.5HP 1PH 230V, helical Cutterhead

Name: Powermatic 201HH, 22'' Planer, 7.5HP 1PH 230V, helical Cutterhead
Brand: Powermatic
SKU: 1002445
Price: 10899.99 USD
Availability: InStock

Item #

1002445

Helical cutterhead with knife inserts provides smoother, quieter cutting and finer finish than conventional systems More details

$10,899.99

How to get the most out of your planer

Ships directly from the manufacturer.

How do you want your item?

Delivery

Check In-Store Availability

Check availability in your nearest store

Expert Advice

Mastering woodwork: Expert insights revealed

Satisfaction Guarantee

Enhance your product’s protection and durability

Click Here

Family Run

Passion passed down through generations

Crafting with Wood: Turn Your Ideas into Reality

Create with wood! Our premium materials make your projects come to life...Read More

Powermatic 201HH, 22' Planer, 7.5HP 1PH 230V, helical cutterhead.

Features:

Helical cutterhead with knife inserts provides smoother, quieter cutting and finer finish than conventional systems
Cast iron 1300 lb. construction for solid performance without vibration
2 feed speeds - 20/30 fpm - accommodates rough and fine finish work
Segmented infeed roller with sectional chipbreaker allows multiple board planing
Roller bearing-mounted feed rollers for long life
Adjustable bed rollers allow smooth feeding of rough or finished workpieces
Oversized cast iron table travels on 2 large lead screws for heavy duty support
Dust chute with 5" port for dust collection
Standard Equipment:
Dust collection port
Adjustable foot pads
Tool kit

(1) Powermatic 201HH, 22'' Planer, 7.5HP 1PH 230V, helical Cutterhead

More Information
Brand	Powermatic
Manufacturer Part Number	PM9-1791267
Weight	1,550.00
Tech Spec	Bed Rollers Adjustable from Front: 2 Blade Size: 0.59 L x 0.59 W x 0.10 Th Column Diameter: 2-1/2" Cuts Per Minute: n.a. Cutterhead Diameter: 3-1/4" Cutterhead Speed (RPM): 4800 Distance Between Rollers - Center to Center (in.): n.a. Dust Collection Minimum CFM Required: 900 Dust Port Diameter (OD/in.): 5 Feed Rate (FPM): 20 and 30 Height: 59" Infeed Roller Diameter: 3" Length: 42inch" Maximum Depth of Cut: 3/16" Maximum Full Width Depth of Cut (in.): n.a. Maximum Height of Rollers Parallel to Tabletop (in.): table rollers - 0.05 Maximum Opening (in.): n.a. Maximum Planing Thickness: 9-1/4" Maximum Planing Width: 22" Minimum Planing Length: 10" Model Number: 201HH Motor HP: 7.5HP Motor Phase: 1PH Motor Voltage: 230V Movement - Horizontal (in.):n.a. Movement - Vertical (in.):n.a. Movement - Vertical (in.):n.a. Net Weight: 1350 pound Number of Knives:150 four-sided inserts Number of Speeds:two Outfeed Roller Diameter: 3" Overall Dimensions: 42" x 49" x 59" Planing Thickness Range (in.): n.a. Prewired: n.a. Range of Speeds (FPM): n.a. Readout Scale: mm/in Rollers (in.): n.a. Rotation (Forward/Reverse): n.a. Segmented Infeed Roller Diameter: 3" Ship Weight: 1430 pounds Swing (deg.): n.a. Table Height Adjust Manual: 1 Turn = 1/16 Table Size: 32-1/4" x 24" Table Support: 2-column Tool Supplied: Yes Width:49inch
Unit of Measure	Each
Planer Blade Size	22"
Planer Cutter Head Speed	4800 RPM
Dust Collection	5" Port
Number of Knives	150

Powermatic 201HH, 22'' Planer Manual

This item will ship directly from the manufacturer.
Must be shipped within the 48 contiguous United States.
Please allow up to 7 business days for your shipment to be prepared.
Additional shipping charges may apply and will be noted below the price.
Items shipped by truck are delivered to the curbside only.
25% restocking fee on all returned merchandise.
Please call customer service before returning product.
