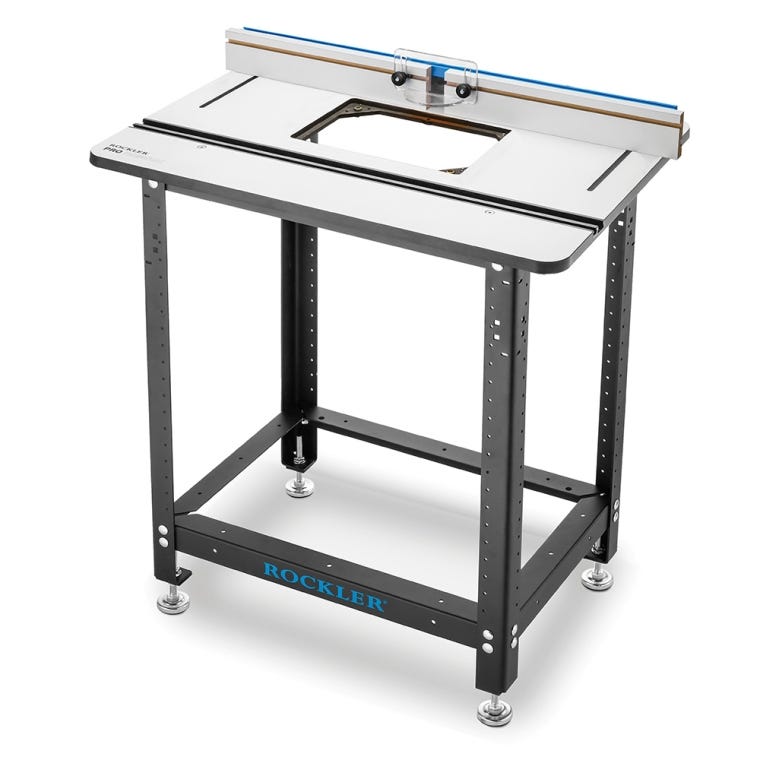

Rockler Phenolic Router Table with Fence and Rock-Steady Stand

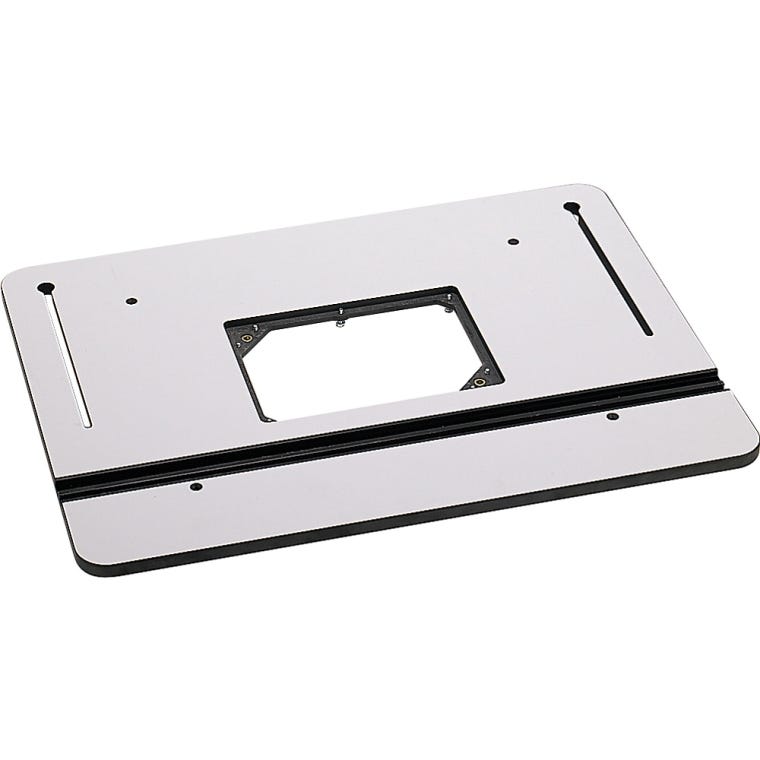

This rugged package combines our Phenolic Router Table Top with a basic fence and Rock-Steady Router Table Stand. Solid phenolic provides an ultra-flat, low-friction table surface that won't warp, dent, scratch or delaminate. An aluminum extrusion backbone ensures that the fence will remain straight. Comfortable knobs make it easy to adjust its pair of white MDF faces for different bit sizes, and to shift the fence back and forth as well as side to side. A 3/4'' T-profile miter slot fits standard miter gauges, while universal accessory T-tracks in both the top and fence accept stops, hold-downs, featherboards and more. Our heavy-gauge steel stand has a generous lip for attaching the top and a shelf, and the legs are studded with a series of holes spaced 32mm on center. These accept our optional Drawer/Shelf Brackets and Hinge Brackets (#67396 and #50676, both sold separately), which let you mount shelves, drawer slides and doors with Euro hinges. They also fit our optional Steel Pegboard Panels (#GRP41284, sold separately) to enclose and further accessorize the stand.

Rockler Phenolic Router Table with Fence and Rock-Steady Stand Details:

• Large, low-friction table provides over five square feet of surface area
• Phenolic top is impervious to water, so it will not swell, delaminate or rust
• 8-point plate leveling system with two locking points
• Opening in top fits 8-1/4''W x 11-3/4''L router table insert plates, sold separately

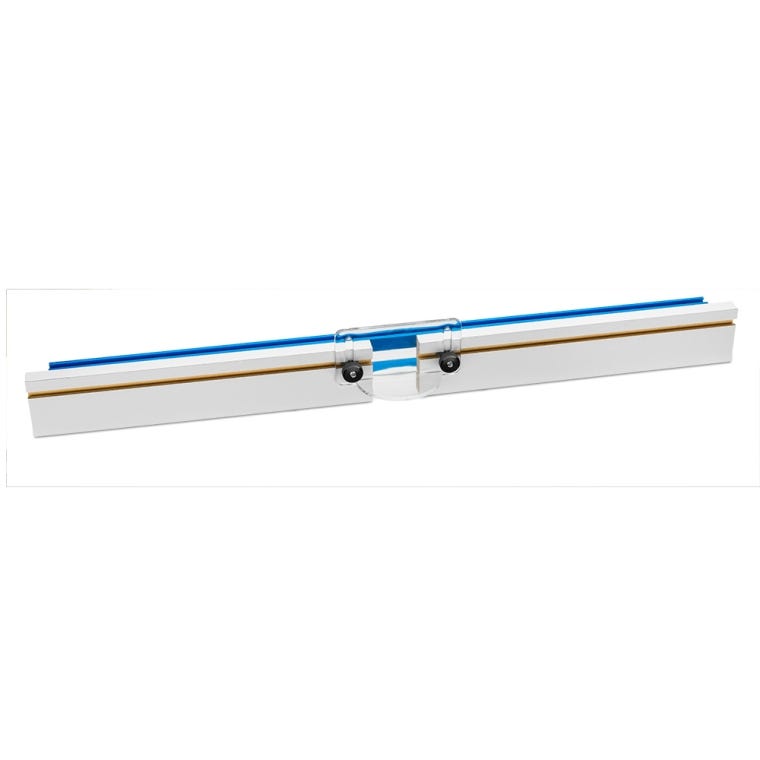

• Fence faces are easily adjustable to accommodate large router bits
• Comfortable knobs for easy, tool-free fence adjustments
• Includes transparent bit safety guard to keep fingers clear of bit area
• Accessory T-track slots in top and fence accept 5/16'' T-bolts, 1/4'' T-bolts and 1/4'' hex bolts

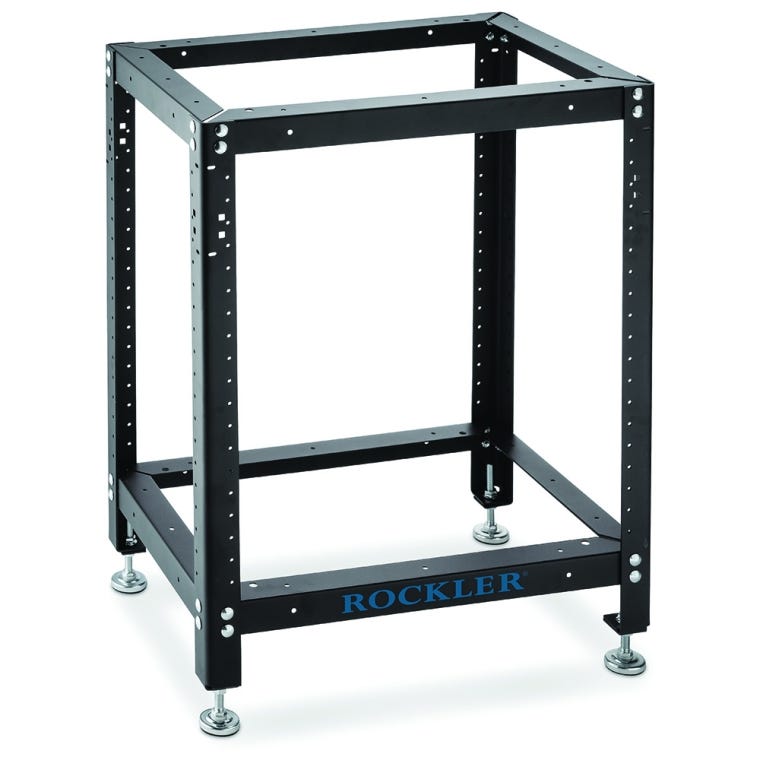

• Heavy-duty steel stand with powder-coat finish: 14-gauge for stretchers, 10-gauge for legs
• Holes in legs are spaced 32mm apart for attaching optional hinge brackets, drawer slide/shelf brackets and panels
• 2''-diameter leveling feet for stability on uneven shop floors

Note: To add a dust port and featherboards, see our 4-Piece Router Table Accessory Kit (#56764, sold separately).

TO COMPLETE YOUR PACKAGE, ADD A LIFT OR A PLATE.

Two lifts are available—both include their own plate:

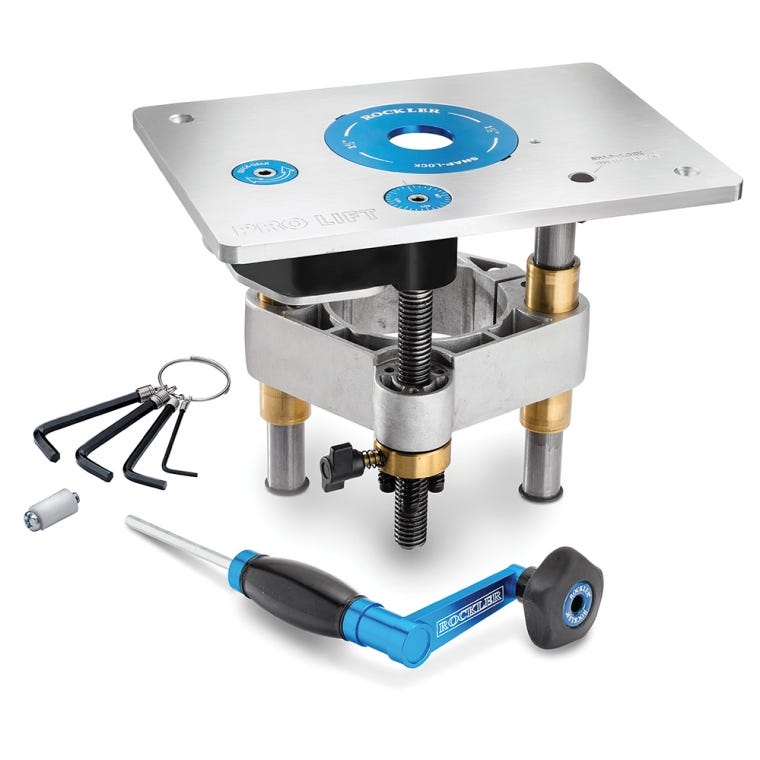

• The Pro Lift, which accepts large router motors up to 4.2'' in diameter (optional reducers available), and features 2-speed Quick-Gear lifting action, Snap-Lock insert rings and a 3/8'' aluminum plate.

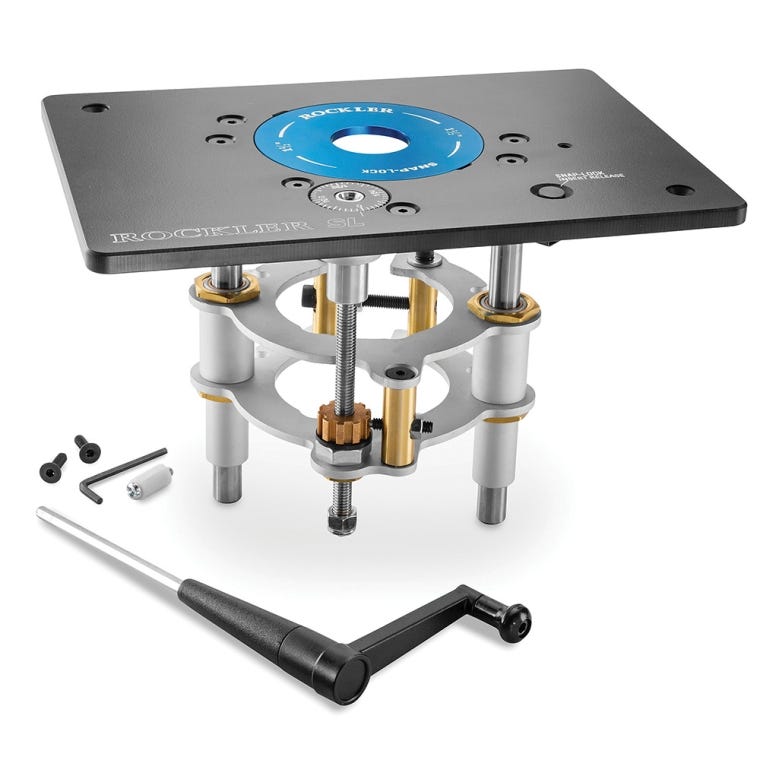

• The SL Lift, which accepts mid-sized 3-1/2'' router motors, and features Snap-Lock insert rings and a 3/8'' phenolic plate.

If you DON'T need a lift, plates are available in two materials:

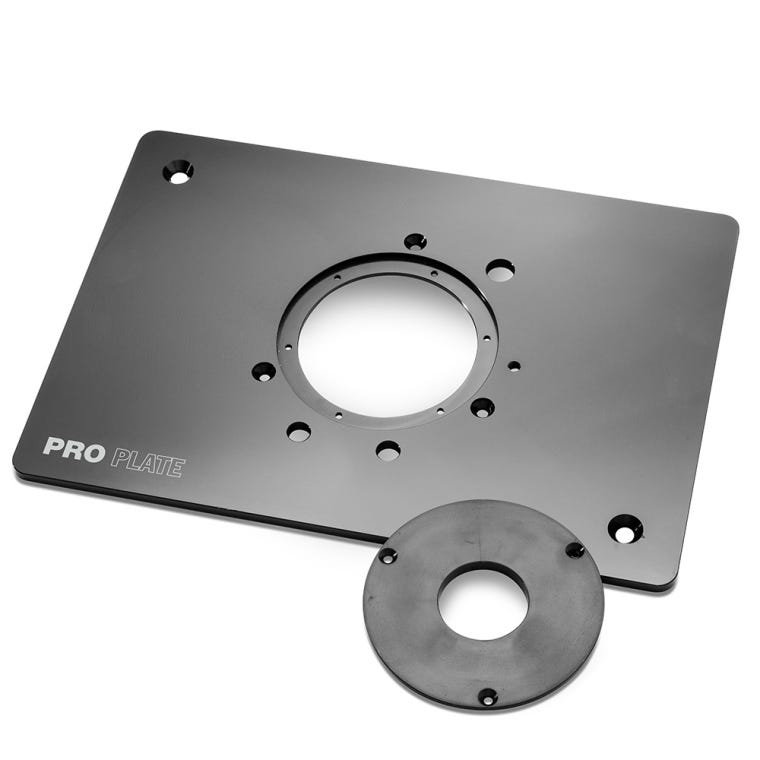

• Aluminum Pro Plates, 1/4'' thick, for the ultimate in flatness and stability

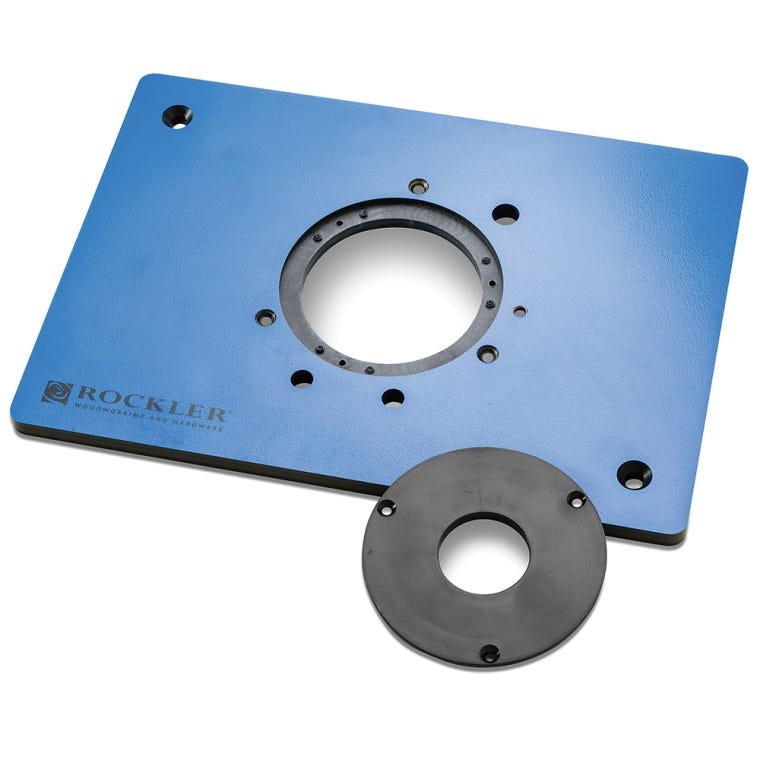

• Phenolic Plates, 3/8'' thick, for low cost and low friction
• All plates measure 8-1/4'' x 11-3/4'' and include a pattern routing pin and a 1-1/2'' ID insert ring. Additional insert ring sizes are available separately. Plates A & B accept Standard-sized (4'') rings. Plates C & D accept Large-sized (4-3/8'') rings.

To choose a pre-drilled plate, find your router below. Note that you may have to drill for the height adjustment rod on your router, if it has one. We are not able to pre-drill for all possible rod locations, since that would compromise the stiffness of the plates.

If your router is not listed: Choose the non-drilled plate with a 4'' insert ring (#57293) and drill the plate to fit your router.

Router Plate A:

• Bosch MRC23 Series, 1617-1618
• DeWalt 616-618
• Hitachi M12VC (fixed and kit)
• Makita 1100
• Milwaukee 5615-5624
• Porter-Cable 690
• Porter-Cable 890
• Porter-Cable 7529
• Porter-Cable 97529
• Porter-Cable 8529
• Ridgid 2930 Combo Kit

Note: Current models of the Porter-Cable 892 require at least two screws to be 1/2" long versus 5/8".

Router Plate B (available in Phenolic only, #50007):

• Craftsman Standard
• DeWalt DW621
• DeWalt DW621K
• Freud FT 1700E
• Freud 1702VCEK
• Skil RT1322-00
• Skil RT1323-00

Router Plate C:

• Milwaukee 5625-20
• Porter-Cable 7518
• Porter-Cable 7519
• Porter-Cable 7538
• Porter-Cable 7539
• Triton TRA001
• Triton MOF001

Router Plate D:

• Bosch 1619-1619EV
• DeWalt 625
• Freud FT2000
