Rockler Beadlock Pro Jig With 3/8 Kit and Case
Item #
BDL7892

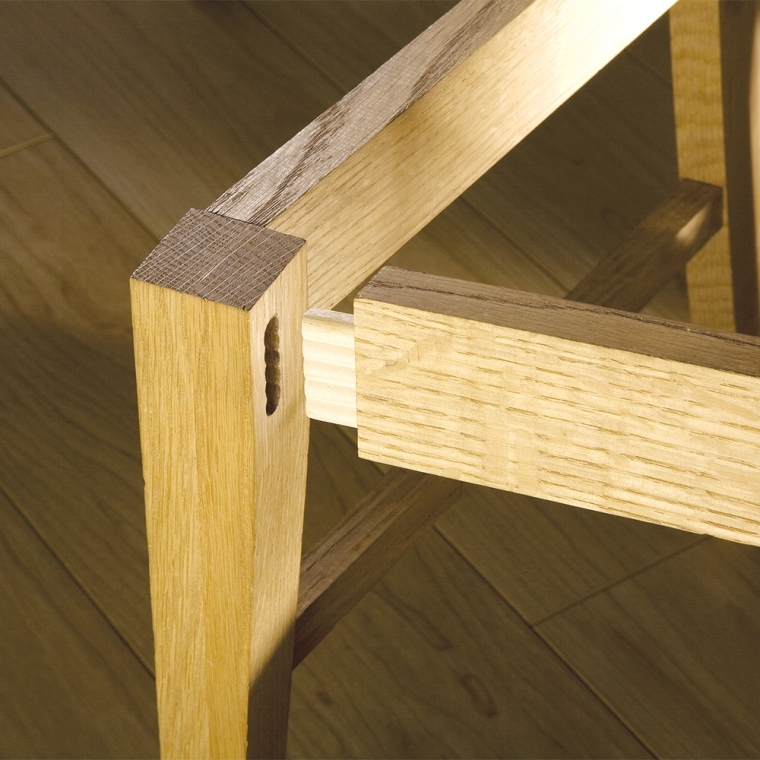

Drill specially-shaped mortises to accept Beadlock loose tenons — creates incredibly strong, concealed joints!
More detailsAs low as $89.99
How do you want your item?
Check In-Store Availability
Check availability in your nearest store
Crafting with Wood: Turn Your Ideas into Reality
Create with wood! Our premium materials make your projects come to life...Read More

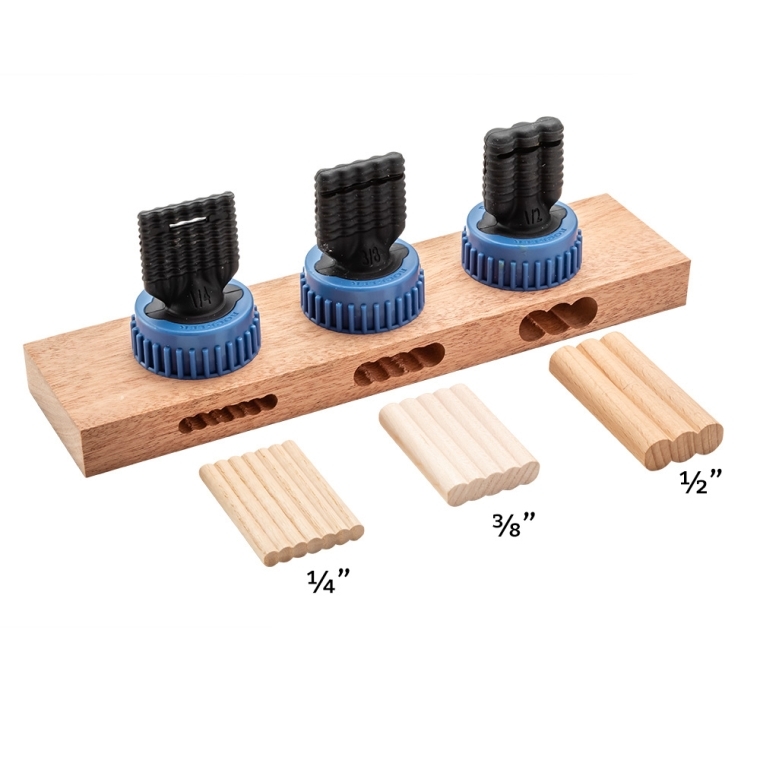

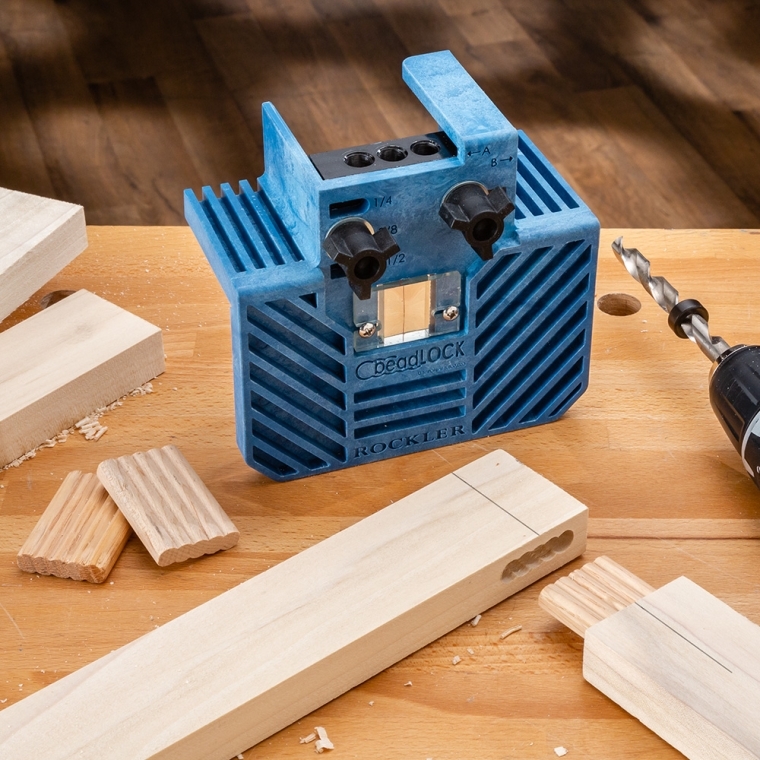

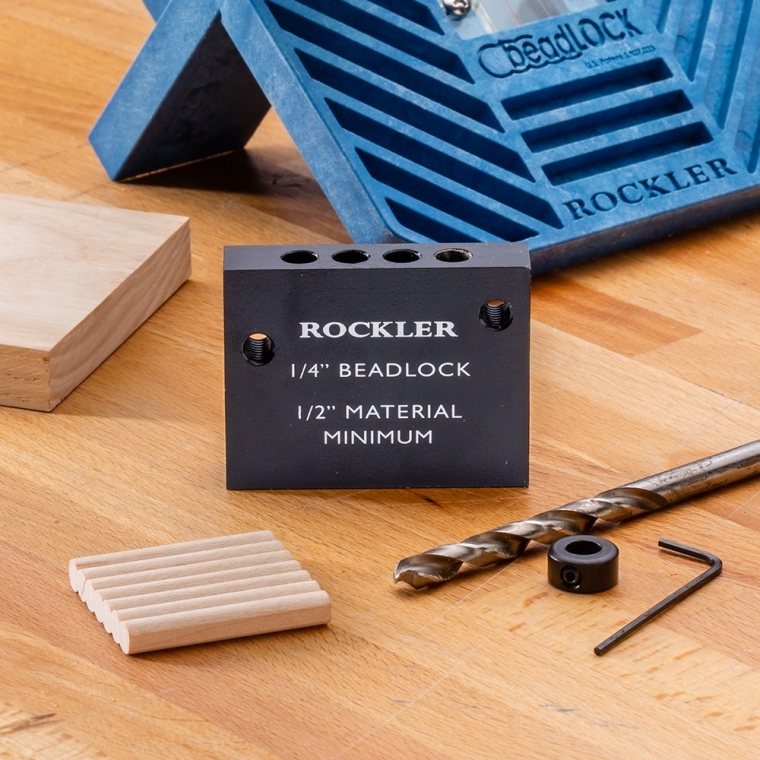

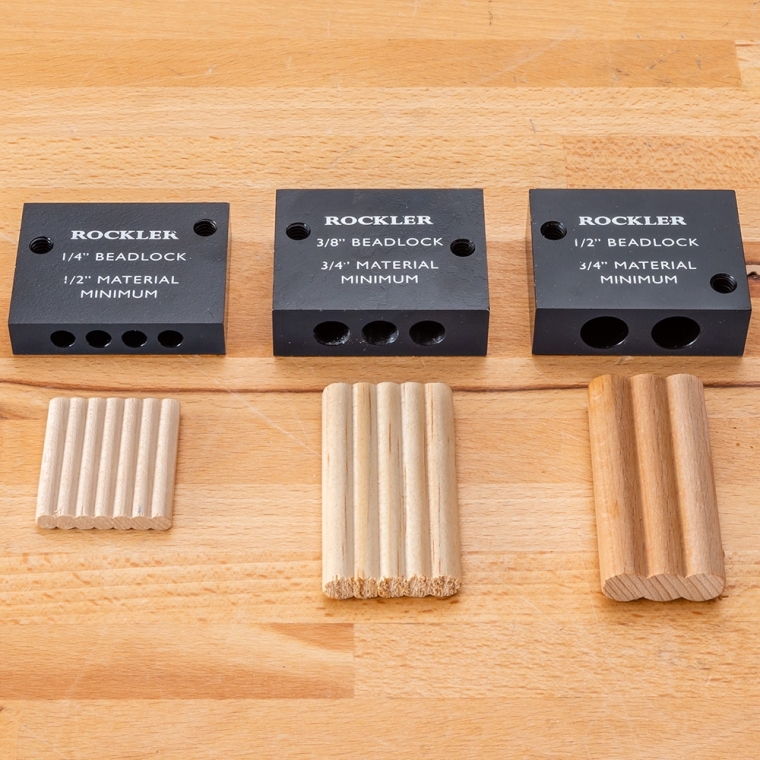

Create incredibly strong, totally concealed joints with only your hand drill and the Beadlock Joinery Jig. Just pop the included drilling guide into the jig in the ''A'' position to locate the initial holes, then slide it to the ''B'' position to drill the overlapping holes. The Beadlock Joinery Jig includes a 3/8'' Beadlock® drill guide, 3/8'' drill bit, 3/8'' stop collar and a molded plastic case with added space for the optional Drill Guide Kits. The Drill Guide Kits are available in 1/4'' and 1/2'' sizes, each with a guide block, drill bit and stop collar.
Features:

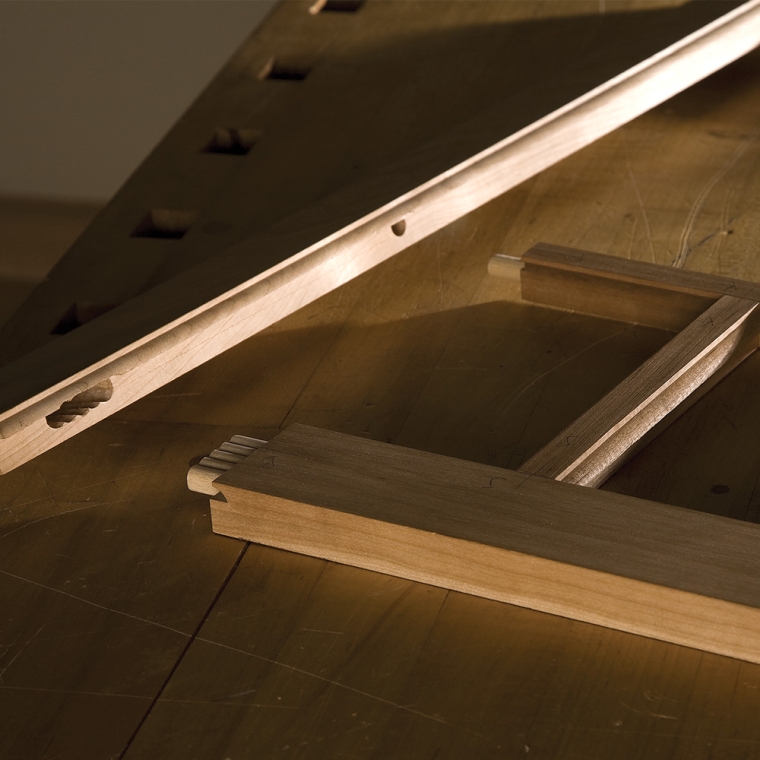

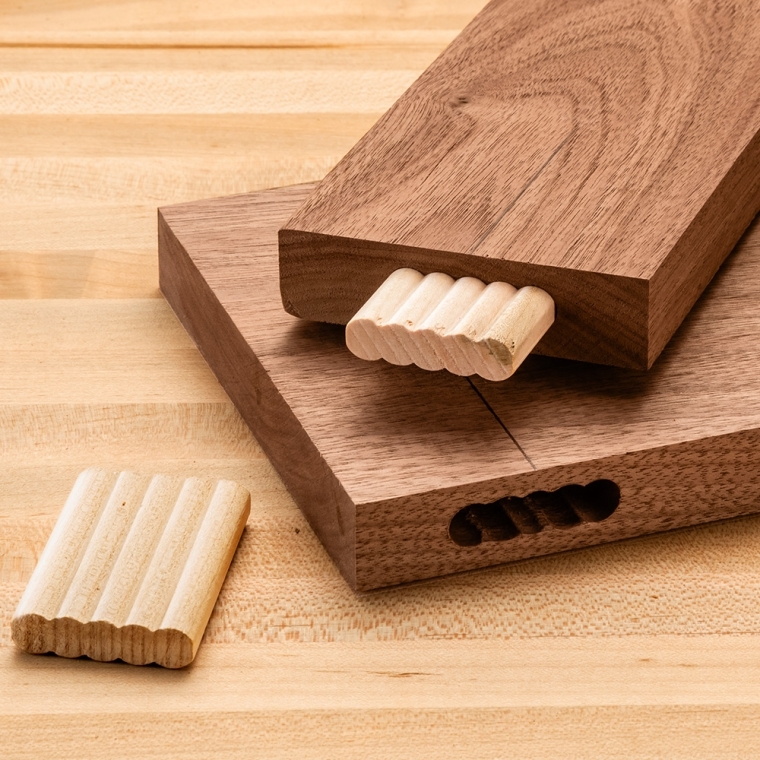

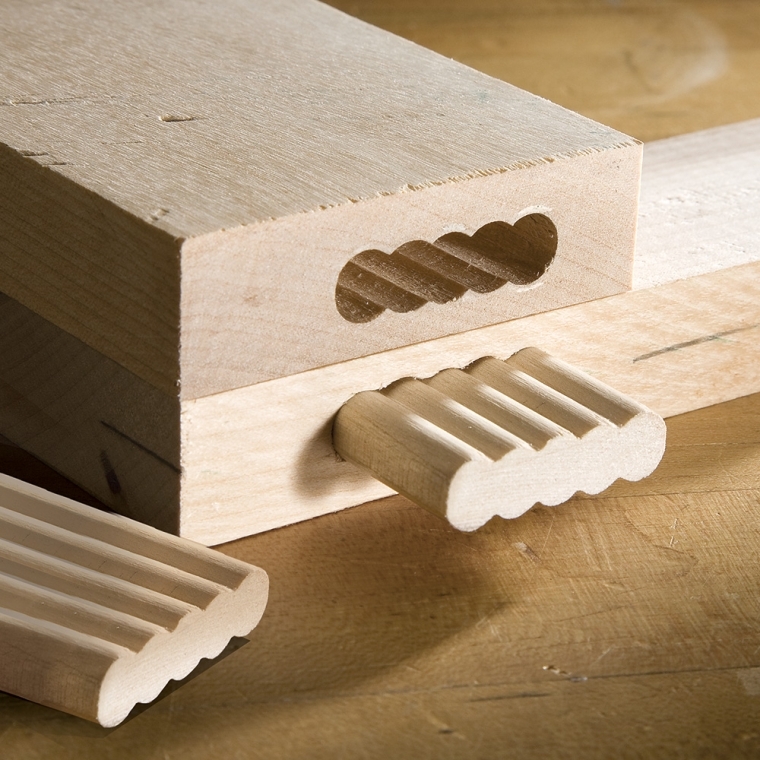

- Overlaps drill bit holes to accept special Beadlock® loose tenons (sold separately)
- Creates an extremely strong, totally concealed joint
- Quick, easy setup—just scribe a line across the center of the two pieces and use the hairline indicator to position and clamp the jig

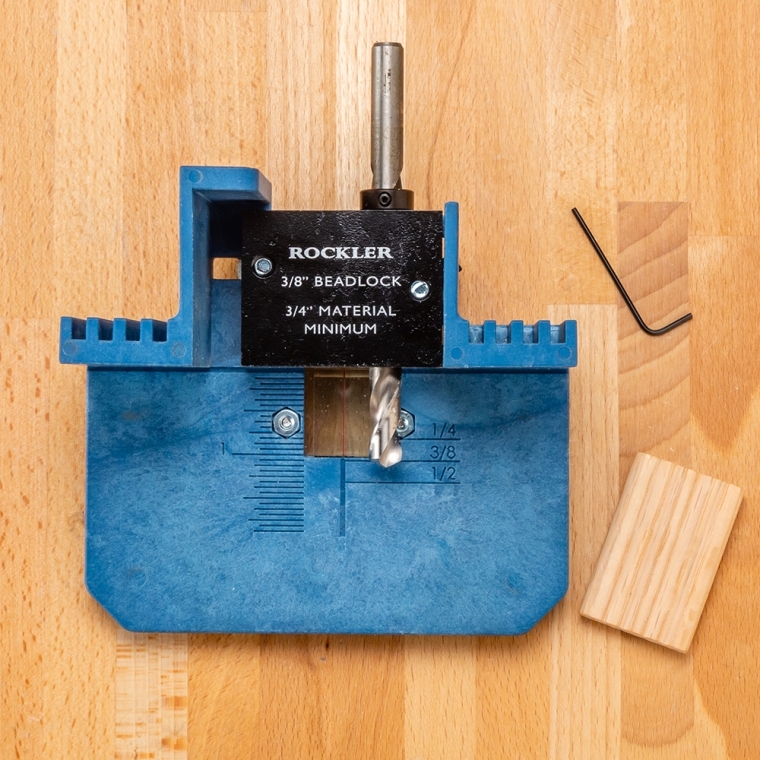

- Jig includes 3/8'' drill guide with hardened steel bushings for accuracy

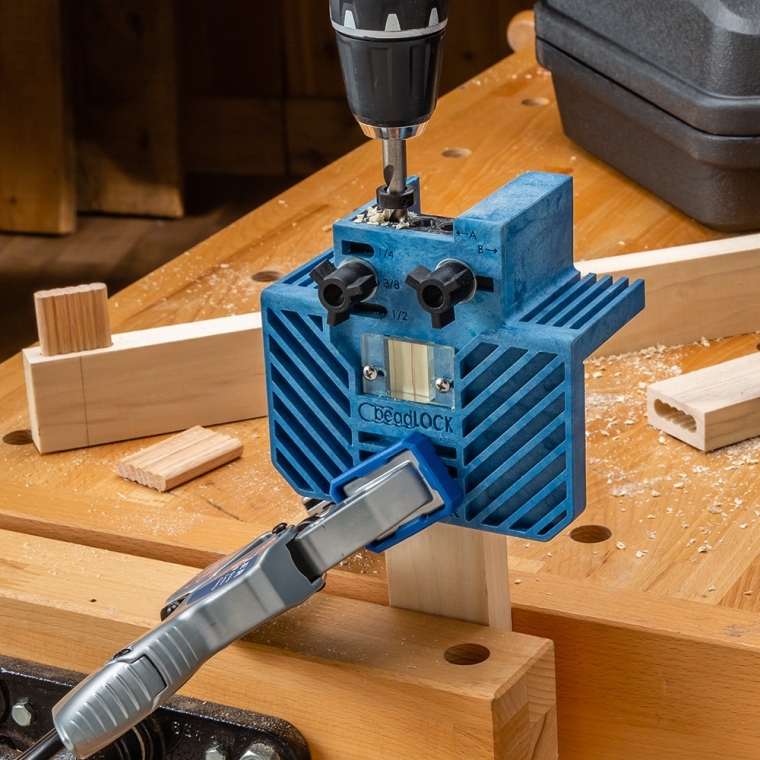

- Dedicated clamping areas let you secure the jig firmly to your work (clamp sold separately)
- Hairline indicator for precise alignment with your reference marks

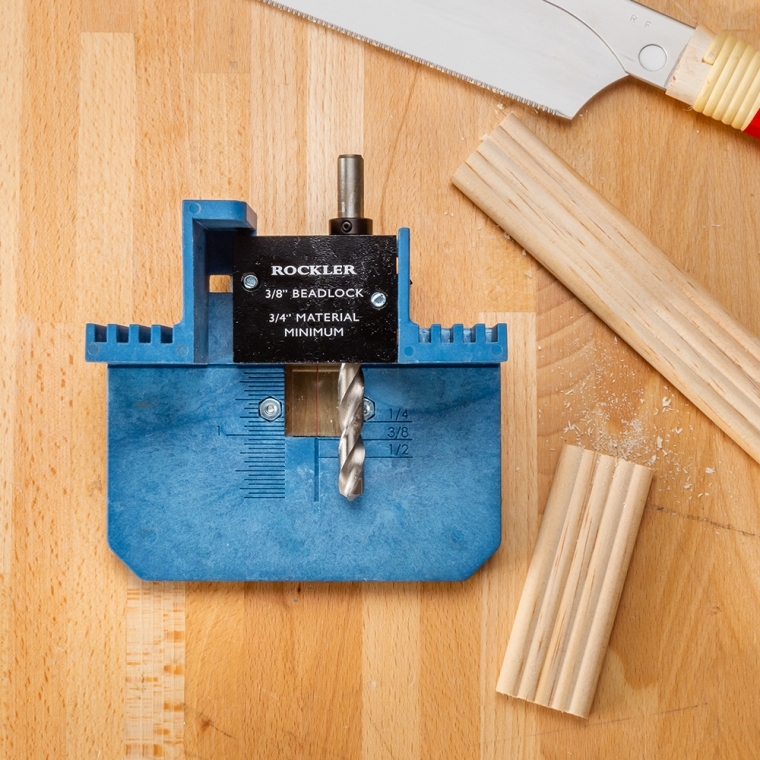

- Included 3/8'' drill guide handles stock thicknesses of 3/4'' and up
- Also includes 3/8'' split-point drill bit, 3/8'' stop collar and hex wrench

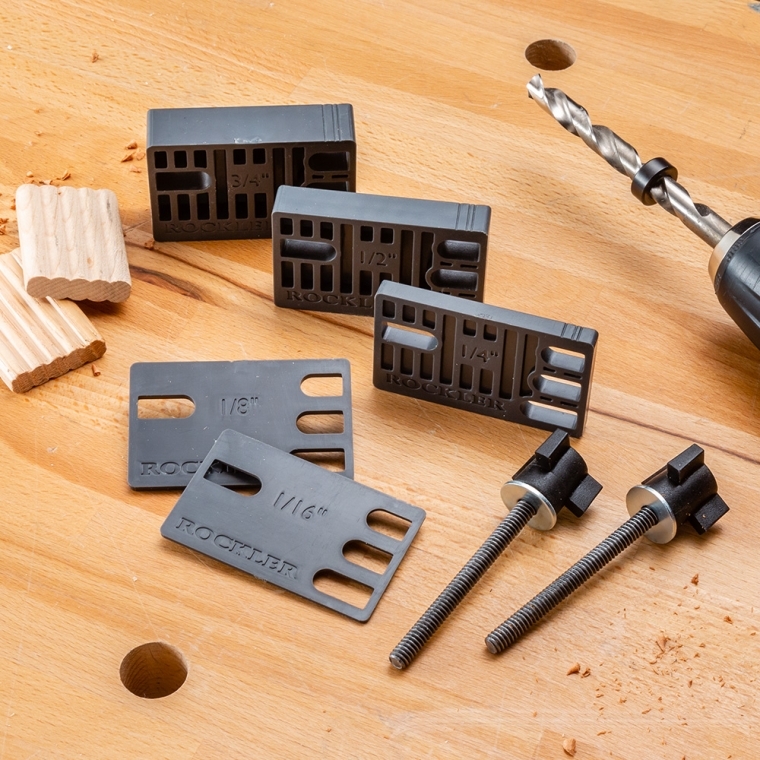

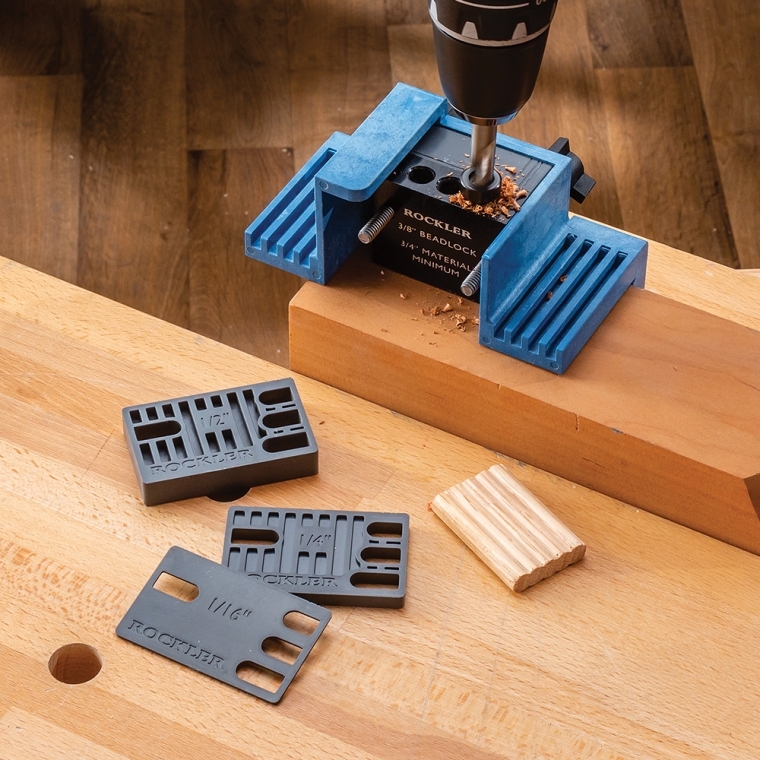

- Optional Spacer Kit with longer knobs (#50917, sold separately) allows you to adjust for off-center drilling, or to center holes on stock up to 4-1/8'' thick

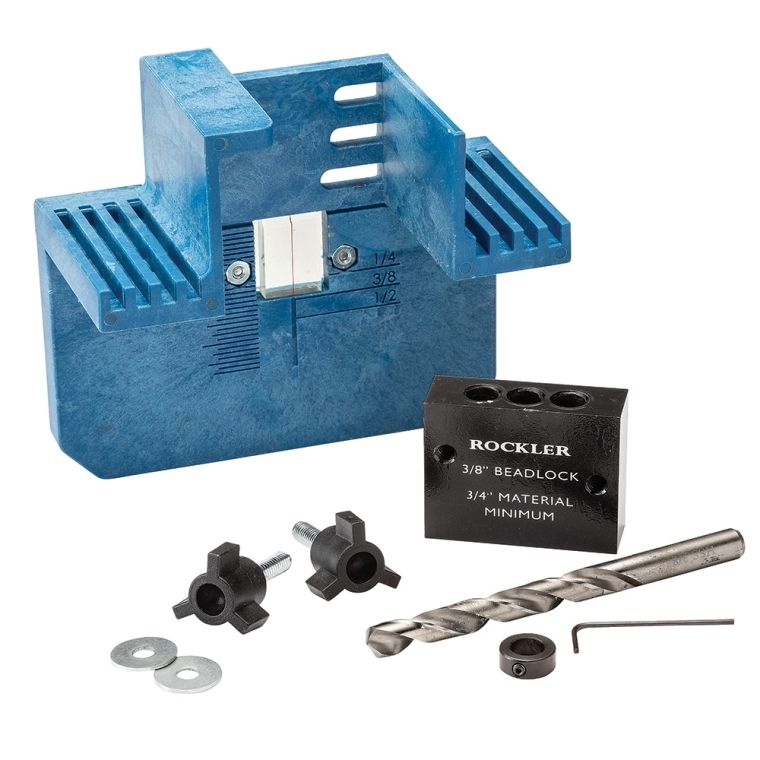

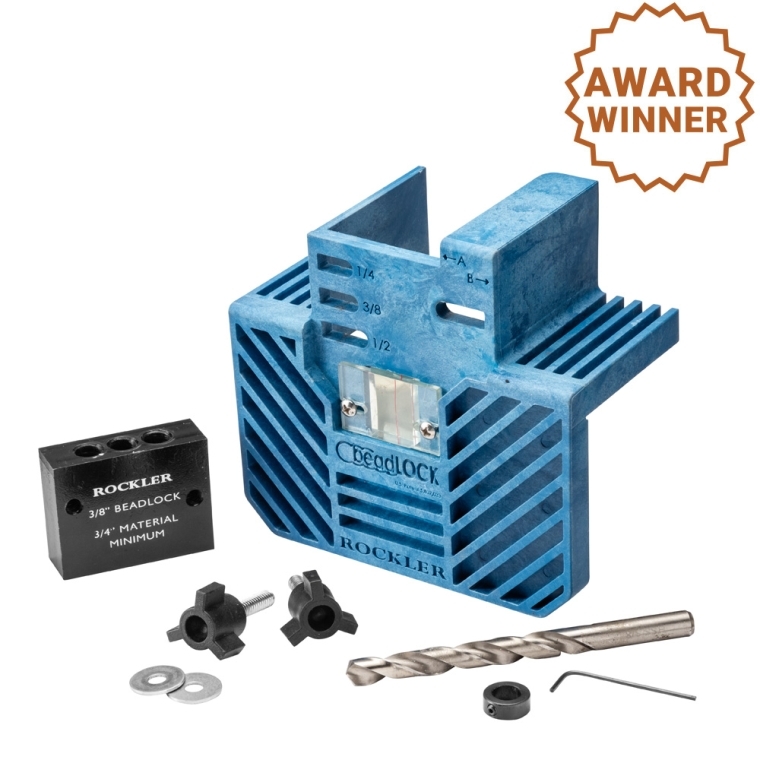

Rockler Beadlock Joinery Jig with 3/8" Drill Guide Kit and Case (#54318)
(1) Jig Frame
(1) 3/8'' Beadlock drill guide
(1) 3/8'' diameter split-point drill bit
(1) 3/8'' stop collar
(1) Hex wrench
(2) 3-Wing knobs with 1/4''-20 x 1'' threaded post
(2) Washers

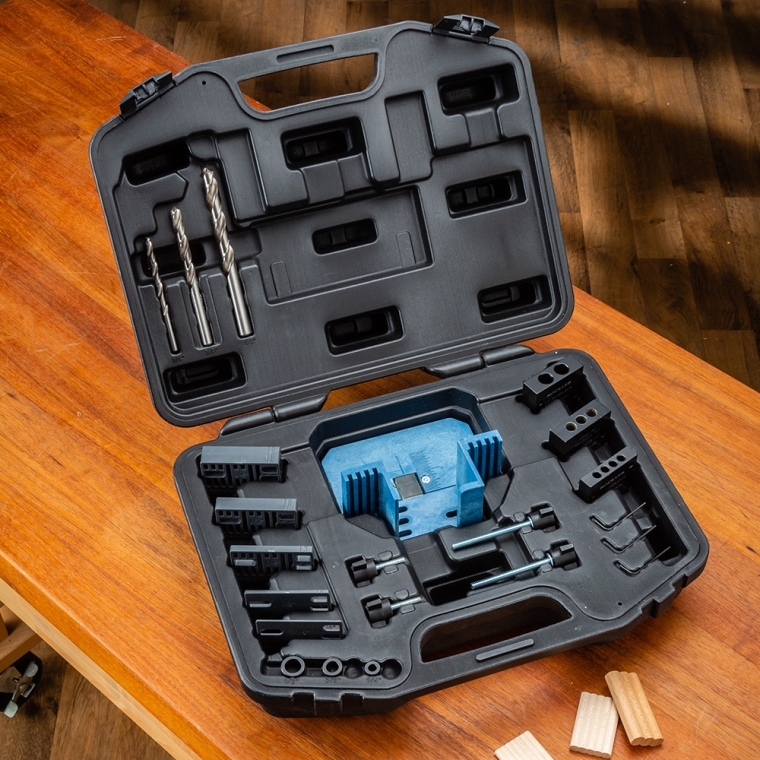

(1) Molded plastic case
| Brand | Rockler |
|---|---|
| Tech Spec |
|
