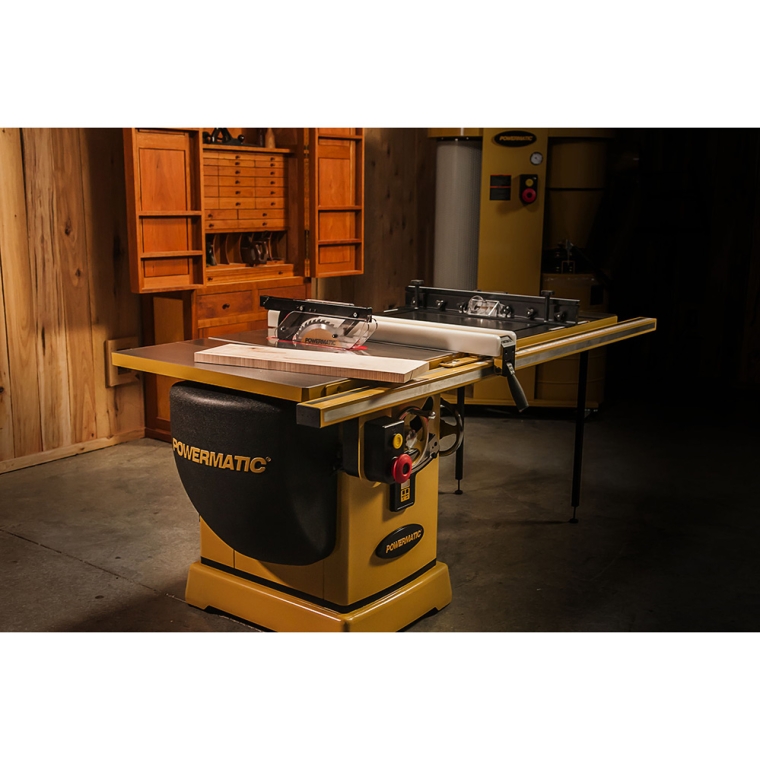

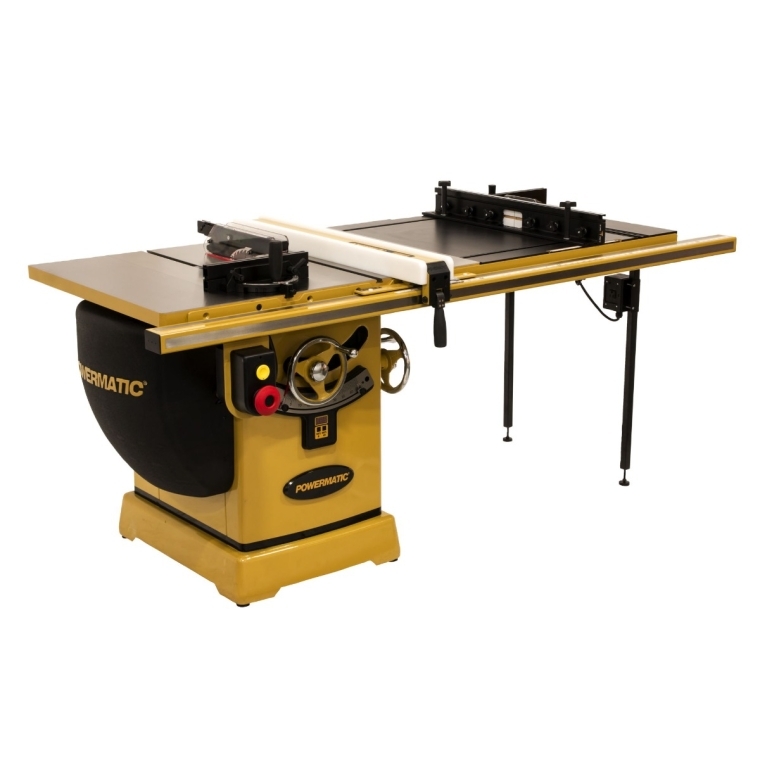

Powermatic PM2000B Table Saw, 5HP 3-Phase 230/460V, 50'' Rip Accu-Fence & Router Lift

Item #
61461
The latest update to the popular PM2000 series—features a hydraulic mobility kit and a DRO for precise blade angle adjustments! More details
$6,013.99

Ships directly from the manufacturer.
How do you want your item?
Delivery
Check In-Store Availability
As soon as today
As soon as today
Check availability in your nearest store

Expert Advice

Mastering woodwork: Expert insights revealed

Contact Us

Satisfaction Guarantee

Enhance your product’s protection and durability

Click Here

Family Run

Passion passed down through generations

Read More

Crafting with Wood: Turn Your Ideas into Reality

Create with wood! Our premium materials make your projects come to life...Read More

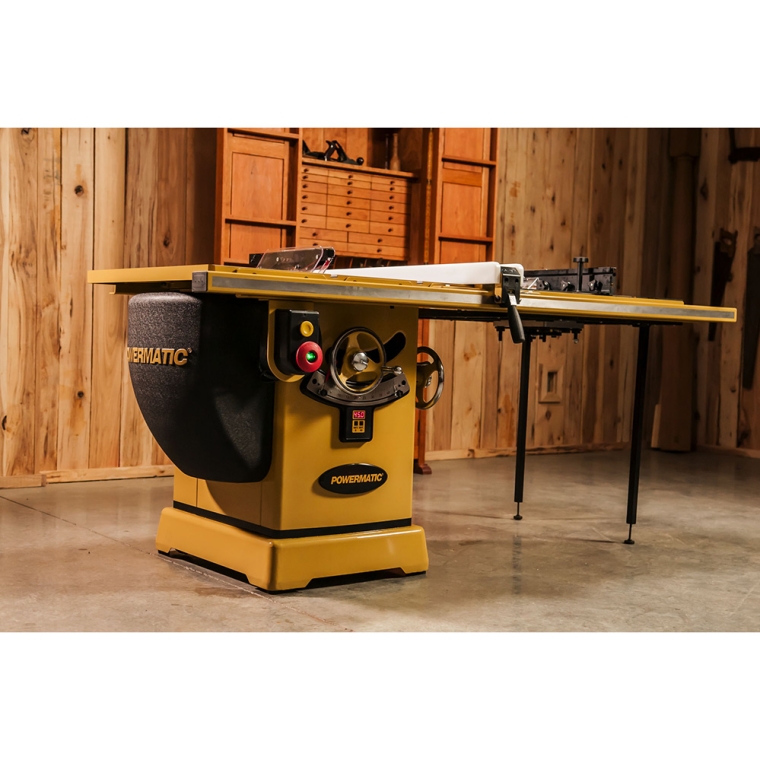

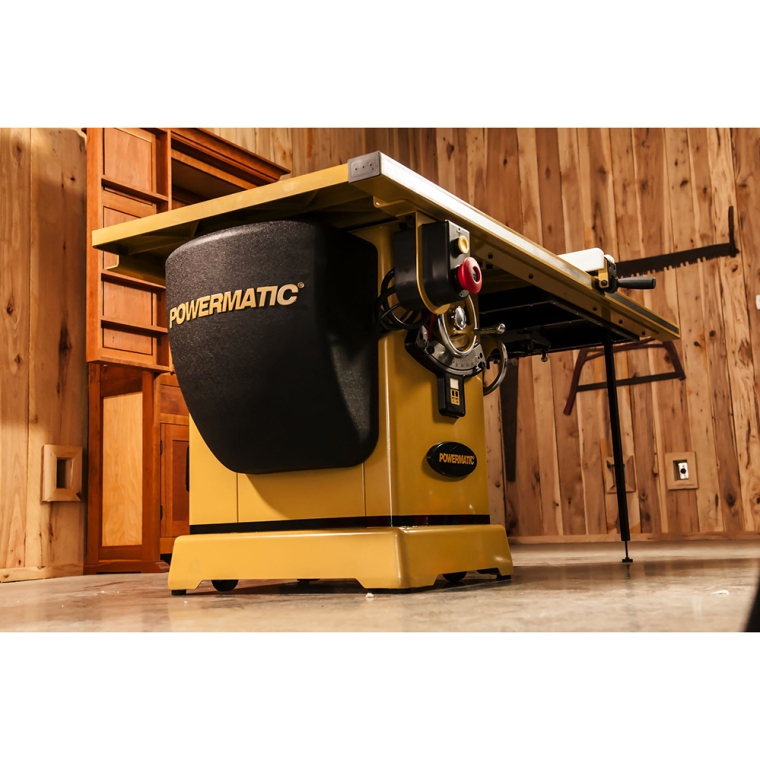

Powermatic's PM2000B table saw is the latest update to the popular PM2000 series. It adds numerous improvements to an already award-winning platform, including a digital readout for precise blade angle adjustments and a hydraulic caster system that lifts your saw higher than previous models—important when moving the saw over a threshold. The redesigned arbor lock lever eliminates the need for two wrenches, and is easily accessible from above the table. Of course, the PM2000B retains all of its most-loved attributes, including a massive body, powerful motor, and oversized precision-ground cast iron tables with smooth bevels on the front and rear edges. The one-piece cast iron box trunnion provides maximum rigidity for consistency and durability, while concave teeth on the trunnion gears promote easier raising and tilting of the blade. Thanks to the Poly-V drive belt, you'll enjoy quieter, more efficient power transfer, virtually no vibration and less heat build-up. The oversized dust chute provides maximum dust collection efficiency. All controls are thoughtfully designed, including a stop button that can be easily knee-activated when necessary.


Features:

  • Includes a full-featured router table with an adjustable fence and router lift

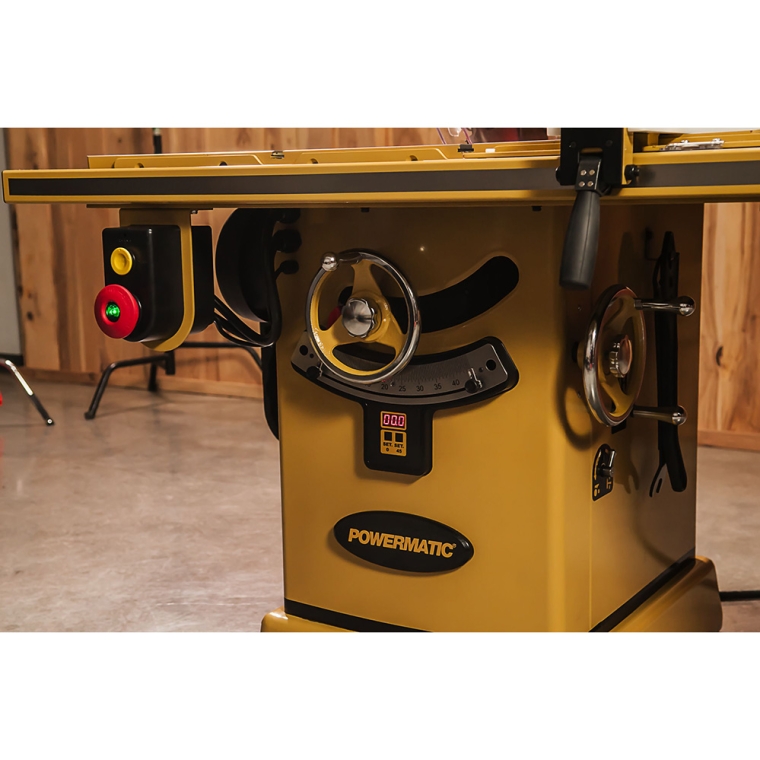

  • Integrated Digital Read Out and adjustable angle indicators for accurate, repetitive bevel cuts

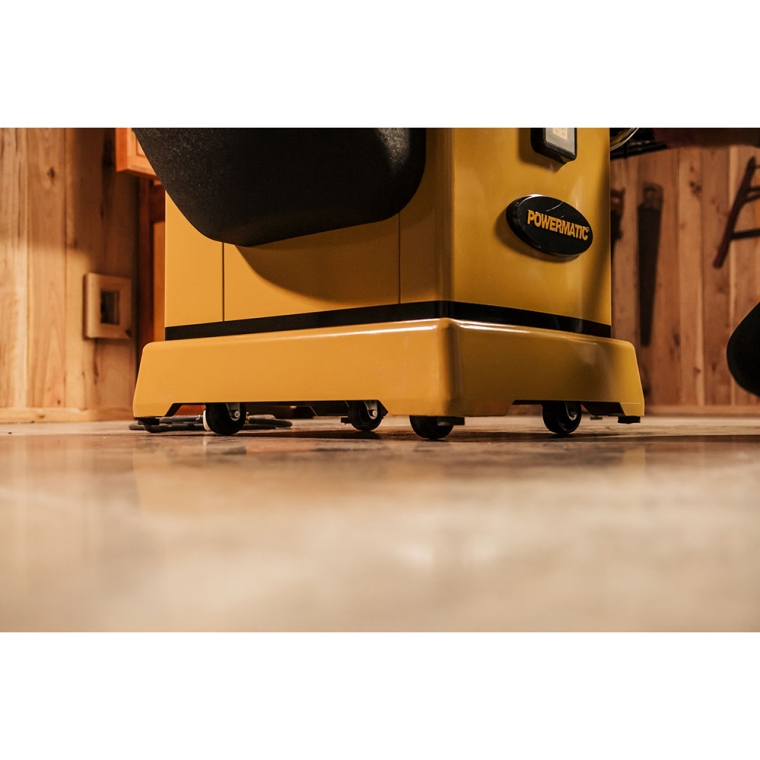

  • Redesigned integrated hydraulic casters feature more lift than previous model

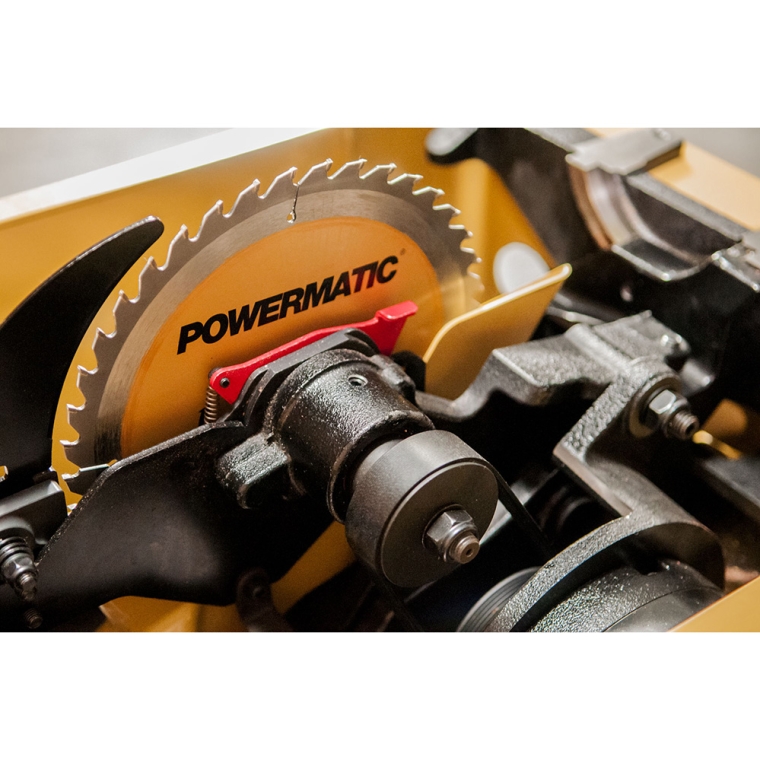

  • New and improved arbor lock for fast, easy blade changes

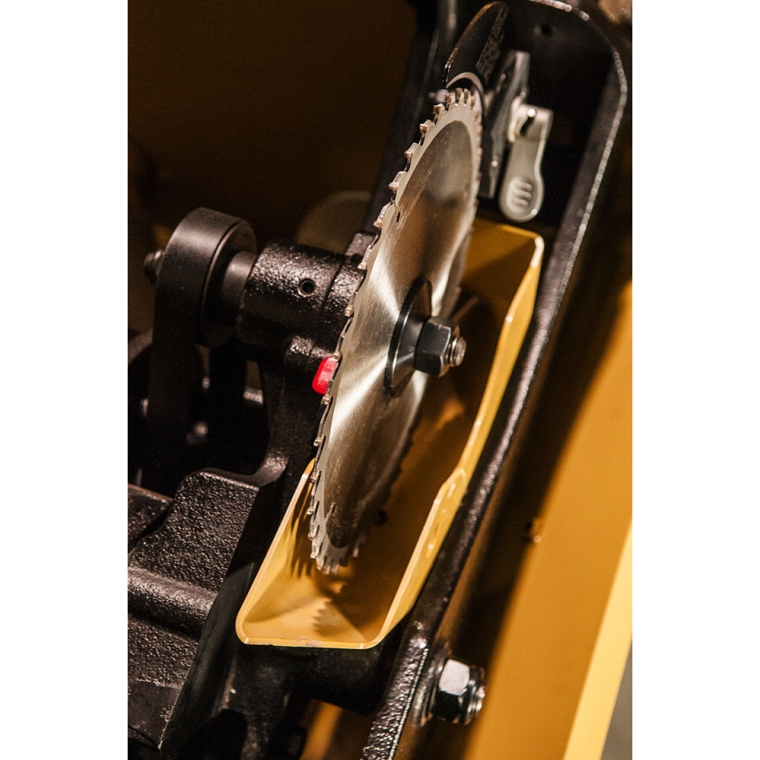

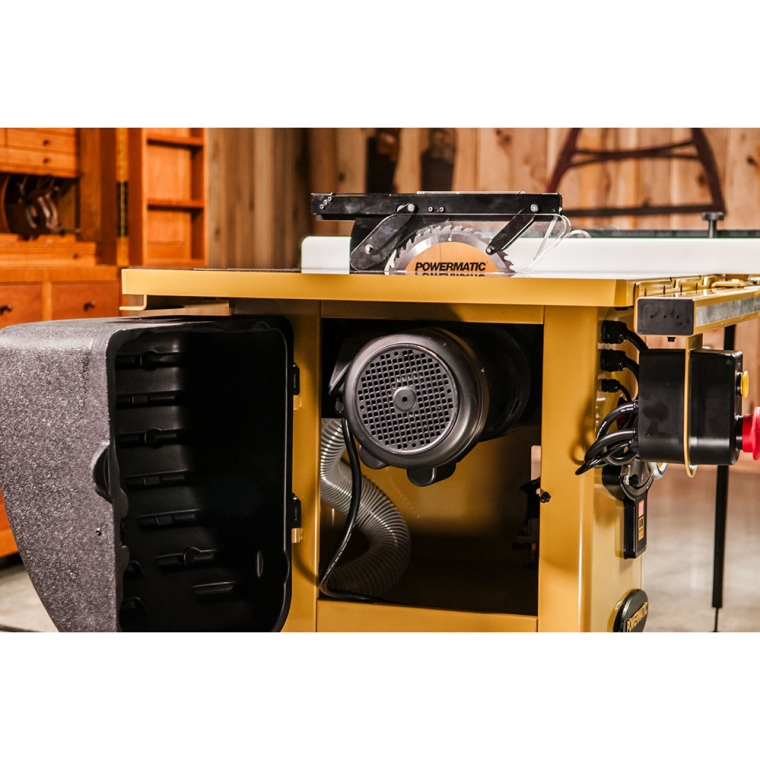

  • Improved dust collection inside and outside of the cabinet

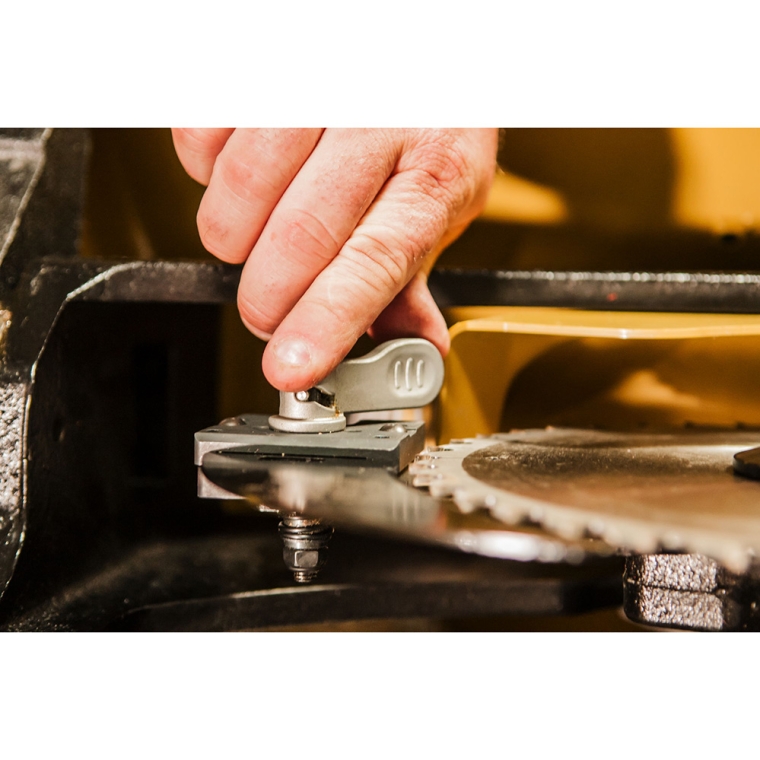

  • Quick-release riving knife lever for hassle-free riving knife changes
  • Wider stance, box trunnion design for maximum rigidity

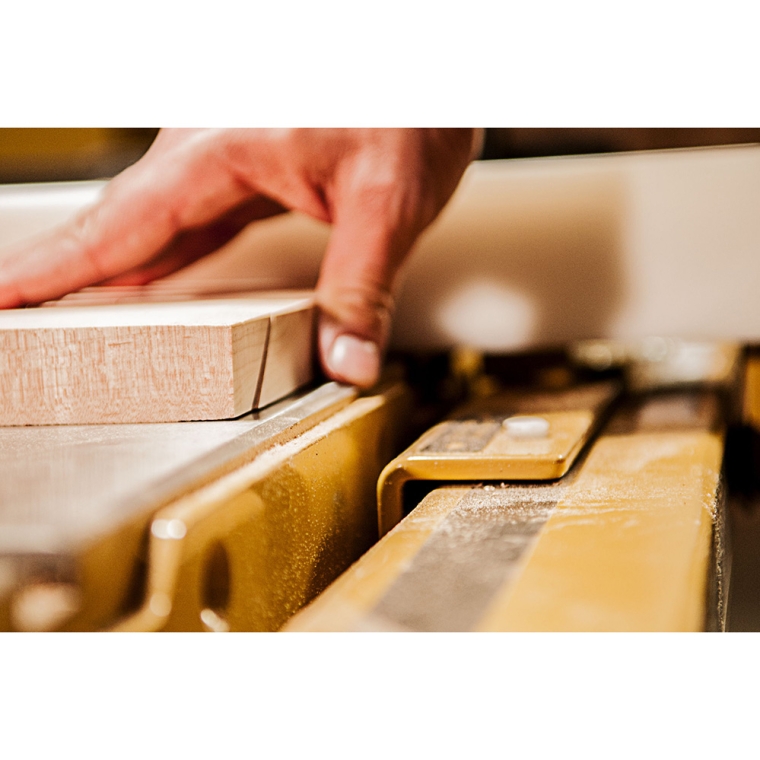

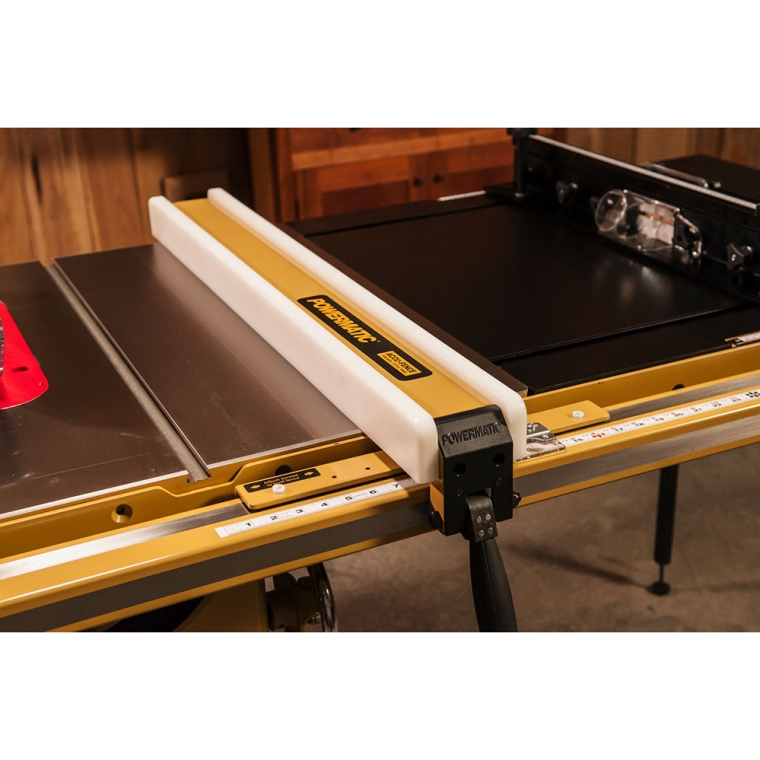

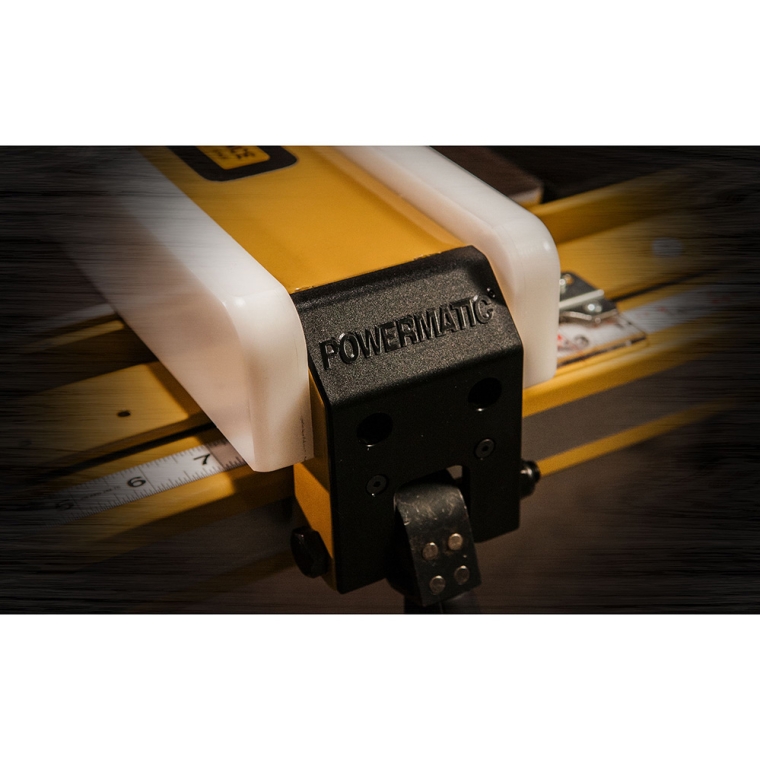

  • Newly designed Accu-Fence® system for convenient, precise dimensioning capability
  • Matching beveled edge between table and extension wings
  • Powermatic PM2000B Table Saws are CSA Certified, and adhere to strict guidelines and electrical requirements

(1) Powermatic PM2000B Table Saw, 5HP 3-Phase 230/460V, 50'' Rip Accu-Fence
(1) Router table extension with fence and lift
(2) Cast iron extension wings
(1) Miter gauge assembly
(1) Push stick
(1) Arbor wrench

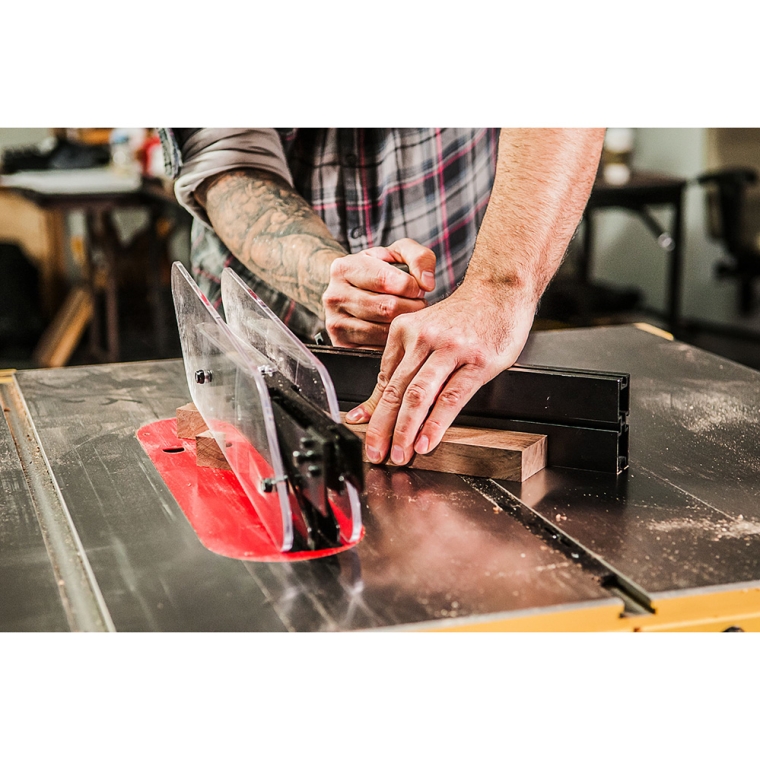

(1) Blade guard
(1) Low profile riving knife
(1) Riving knife
(1) Anti-kickback pawl assembly
(1) Table insert (preinstalled)
(1) Blade (preinstalled)
(1) Hardware package
(1) Manual

More Information
Brand Powermatic
Manufacturer Part Number PM9-PM25350RK
Weight 738.50
Tech Spec
  • Style (Type): Cabinet
  • Blade Diameter (In.): 10
  • Arbor Diameter (In.): 5/8
  • Arbor Speed (RPM): 4500
  • Maximum Depth of Cut at 90 Degrees (In.): 3-1/8
  • Maximum Depth of Cut at 45 Degrees (In.): 2-1/8
  • Maximum Diameter of Dado (In.): 8
  • Maximum Width of Dado (In.): 13/16
  • Table in Front of Saw Blade at Maximum Depth of Cut (In.): 11-1/4
  • Maximum Rip Right of Blade (In.): 50
  • Maximum Rip Left of Blade (In.): 13-1/2
  • Table Type: Cast Iron
  • Table Height from Floor (In.): 35
  • Table Size (In.): 22 x 30-1/2
  • Table Size with Extensions (In.): 42 x 30-1/2
  • Table T-Slot (In.): 3/4 x 3/8
  • Dust Collection Minimum CFM Required (CFM): 400
  • Dust Port Outside Diameter (In.): 4
  • Motor Power (HP): 5
  • Motor Phase: 3
  • Motor Voltage (V.): 230/460
  • Prewired Voltage (V.): 230
  • Motor Current (Amps): 13/6.5
  • Recommended Circuit Size (Amps.): 20
Unit of Measure Each
