SawStop Scale Miter Gauge

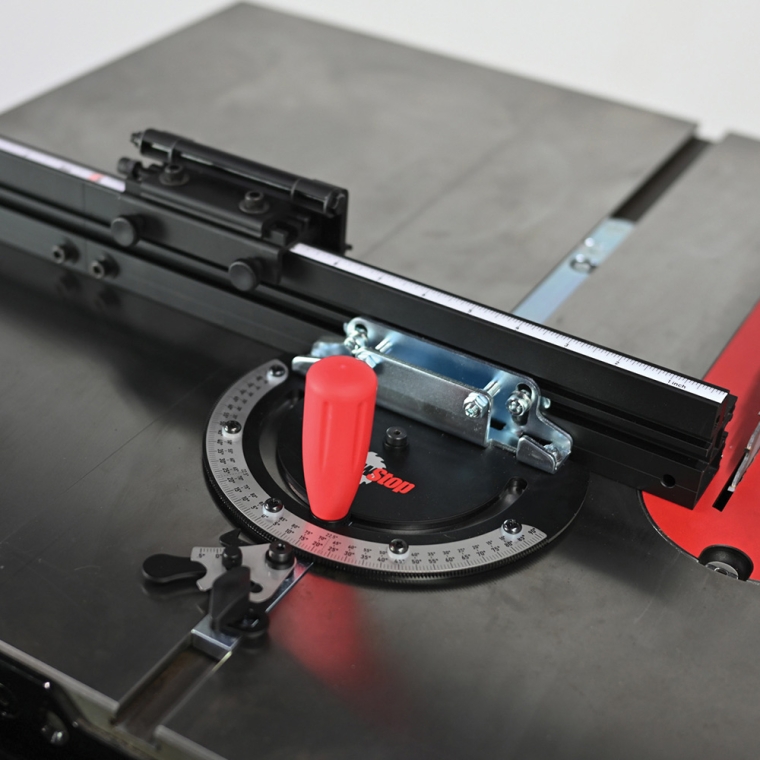

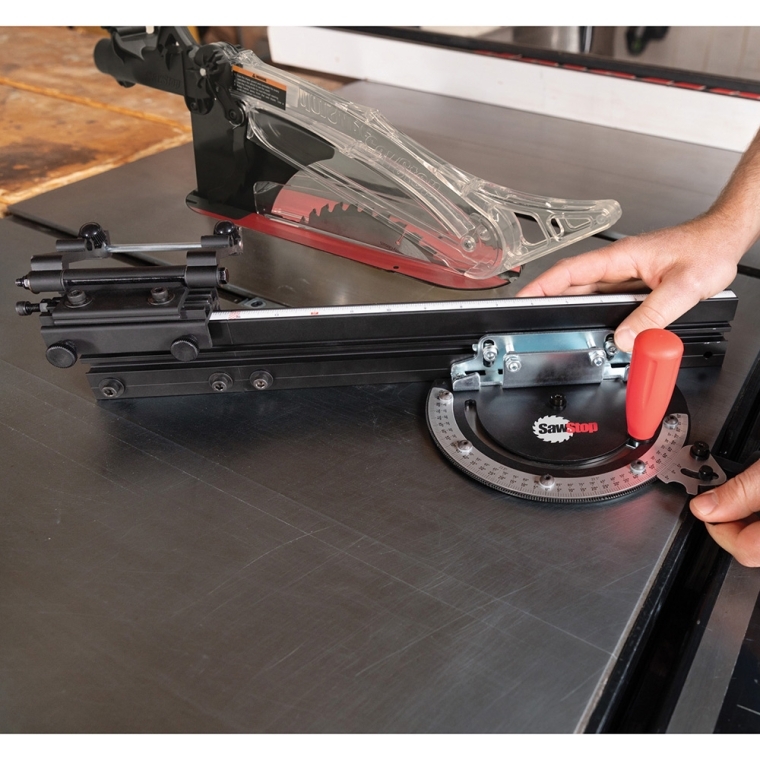

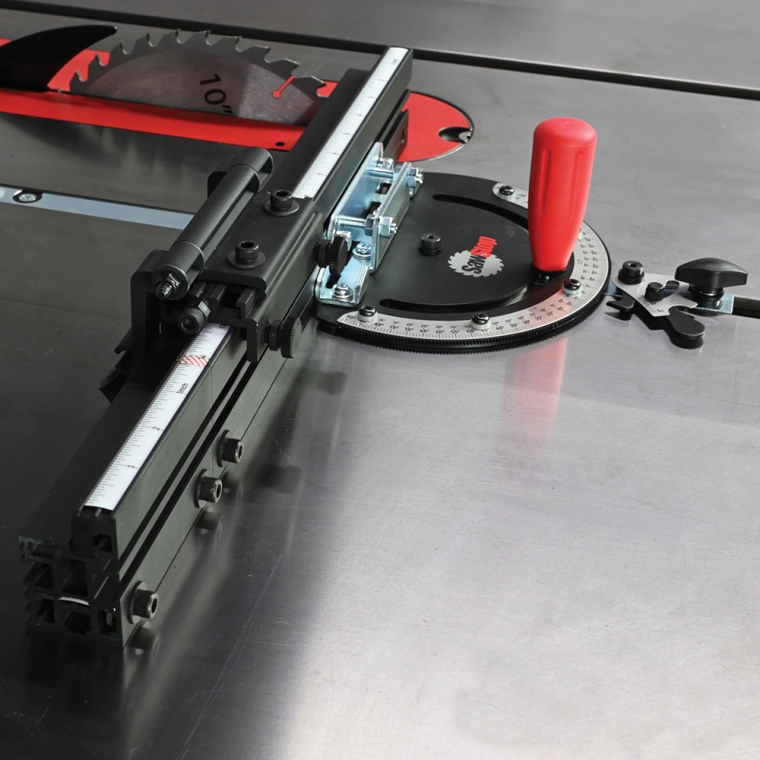

Perfect the crosscutting accuracy of your table saw with the SawStop TSA-SMG Scale Miter Gauge. This exceptional tool boasts 180 locked-in angles, plus an ingenious fine-tuning device for can't-miss accuracy for your woodworking projects. Notches in 1° increments provide precise adjustments, while the Vernier scale allows for additional fine-tuning in 1/10° increments. The 18'' long miter bar features adjustable washers for removing play in the miter slot, plus an extendable fence that adjusts up to 31''. The included flip stop's 1/32'' increments and micro-adjuster enable you to make identical, repeatable cuts effortlessly. Accessory tracks in the fence face allow easy attachment of sacrificial fences.

SawStop TSA-SMG Scale Miter Gauge Details:

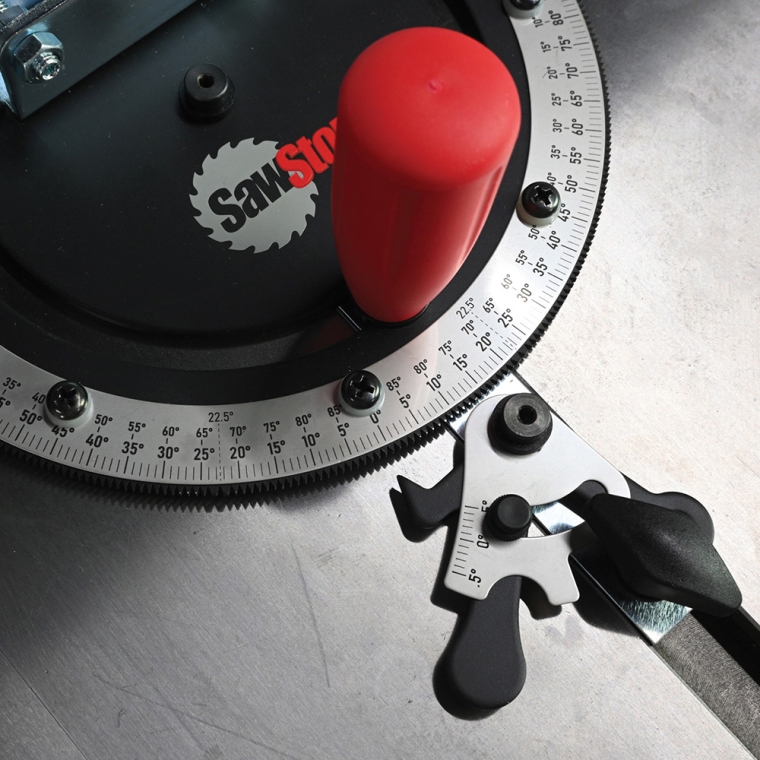

• Miter head features a pointer and 90 notches to each side of 0° in 1° increments, including one for 22.5° on each side
• Vernier scale lets you fine-tune each angle detent in 1/10° increments
• 18'' long miter bar uses six adjustable expansion discs to eliminate movement in the miter slot while ensuring a smooth glide
• Aluminum fence provides a large reference for workpieces, with a telescoping extension that reaches up to 31'' for flip stop use
• Scale on top of fence can be calibrated to enable precise crosscuts without having to measure and mark your boards
• Accessory tracks in the fence face allow easy attachment of sacrificial fences
• Flip stop indexes on the fence in 1/32'' increments; dual arms can be set independently at different lengths from the blade or linked together, and all can be fine-tuned with the micro-adjuster
