Next Wave CNC Shark HD544

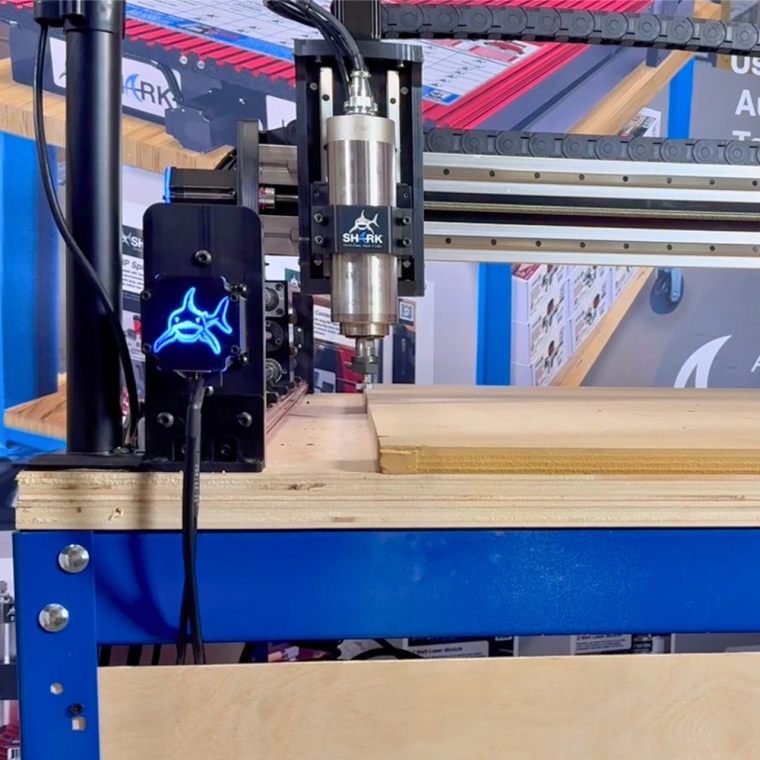

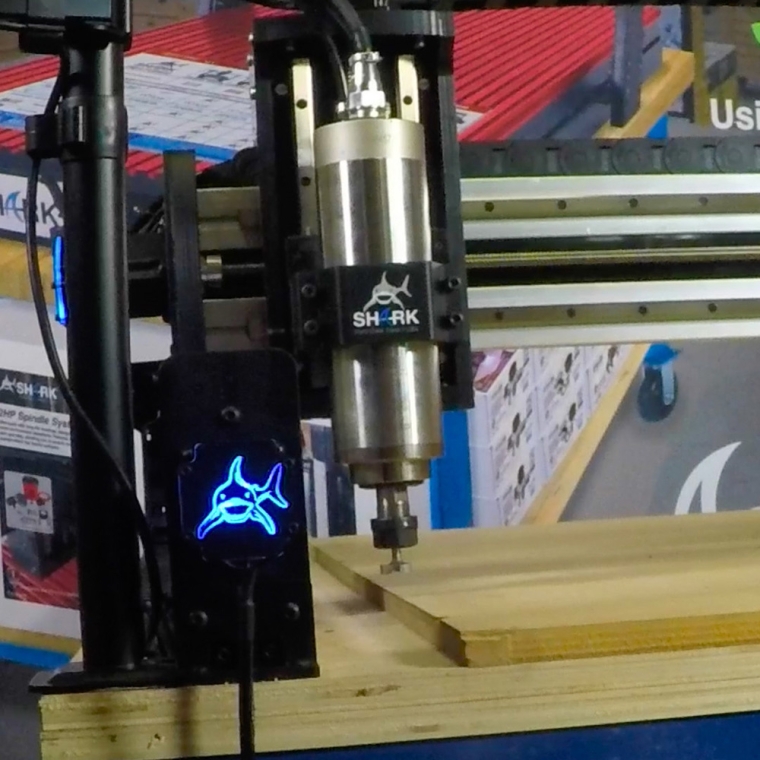

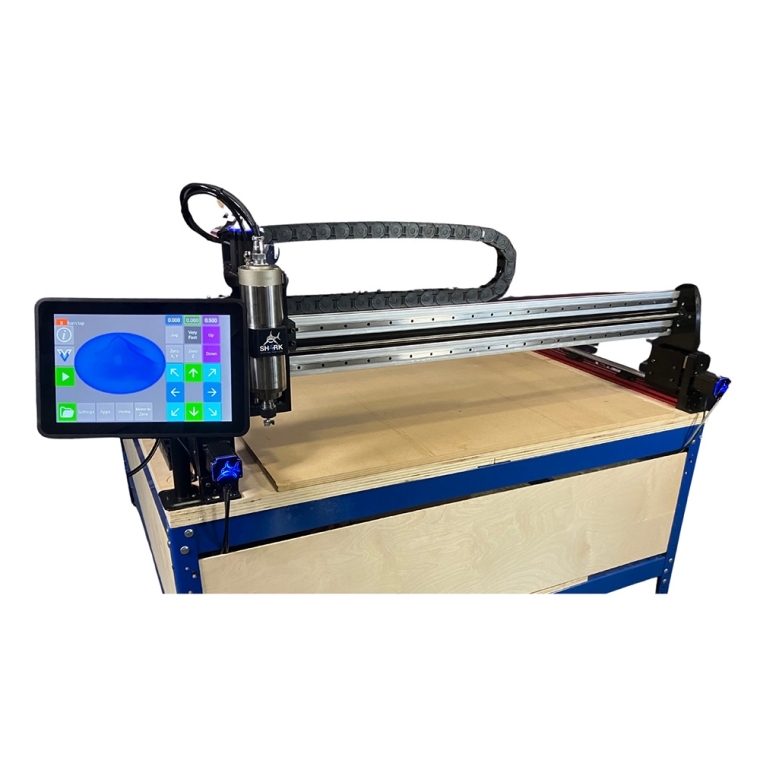

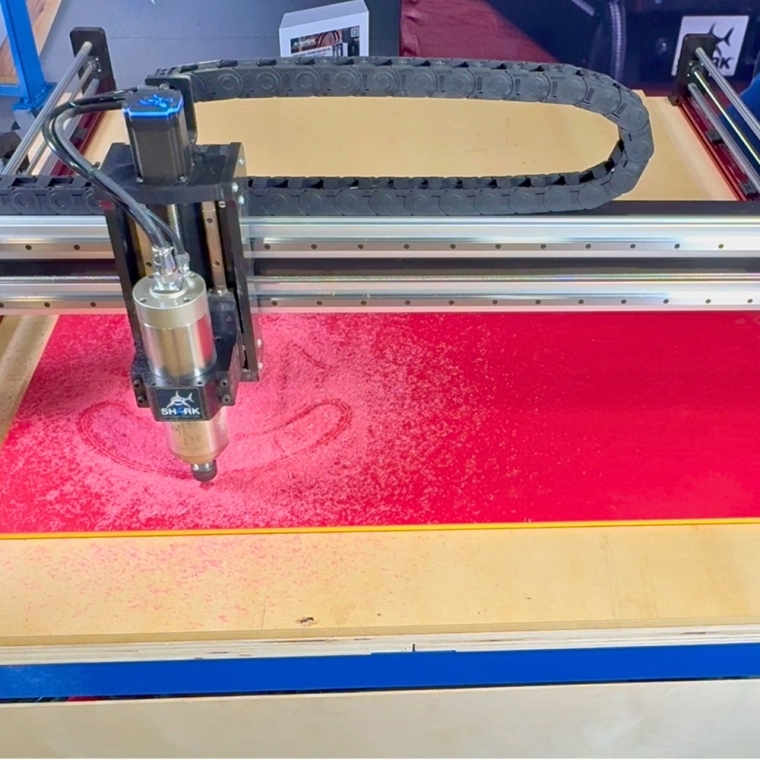

The Next Wave Shark HD544 will expand your part-making capabilities in wood, plastics, soft metals and other materials with the ultimate in computer-aided control. Featuring more than 4' x 4' of machining capacity in an open-base platform, it can cut, carve, drill, shape and mill both large and small workpieces with absolute precision and efficiency. Designed and built for heavy-duty applications and long service life, the HD544 has a 3HP water-cooled spindle that travels on high-speed linear guides and bearings, with high-speed anti-backlash and ultra precise leadscrews on all axes. The system supports rapid movement up to 400 inches per minute. A wide color-enhanced pendant controller with touch screen eliminates the need for a separate computer to operate the CNC, if you use VCarvePro software (available separately). Or you can run the Shark HD544 from your laptop or PC with the included Ready2Control program. It lets you use Next Wave's exclusive patented Virtual Zero Unlimited software, which adjusts your design to fit curves and angles that would be impossible on other brands of machines.

The Shark HD544 is ready to assemble on table measuring at least 64" x 64", which is not included. This model is fully compatible with Next Wave CNC’s extensive product line of accessories, such as laser, 4th axis, digitizer and more. Made in the USA, it includes U.S.-based technical support and a two-year warranty.

Next Wave CNC Shark HD544 Details:

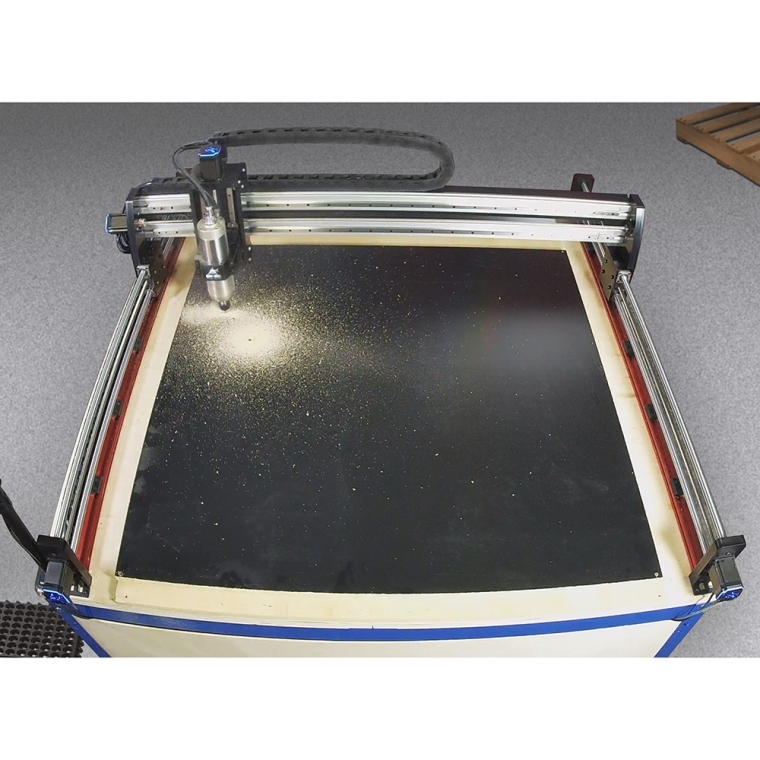

• Extended bed offers 50'' of travel in both X and Y axes

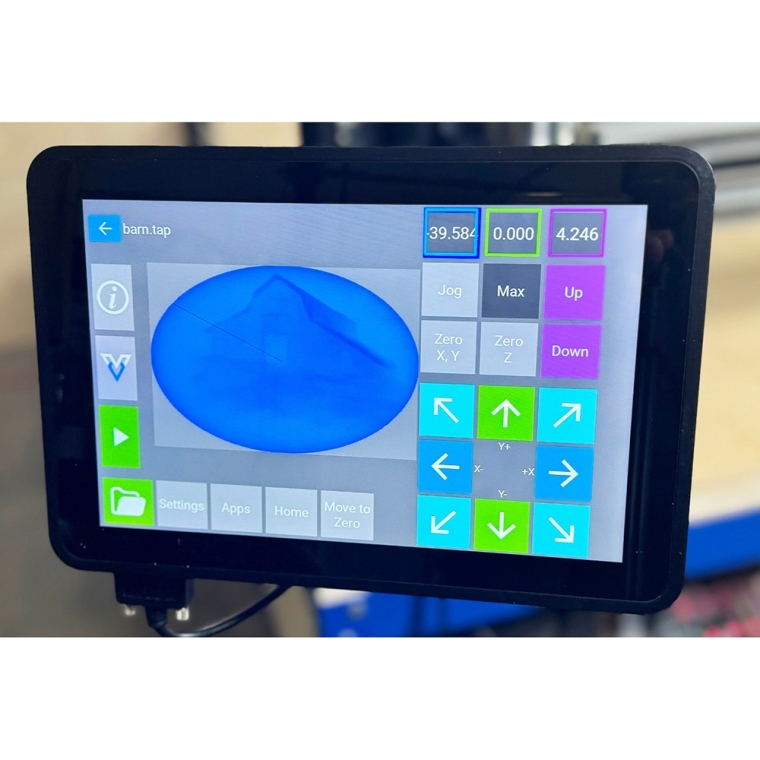

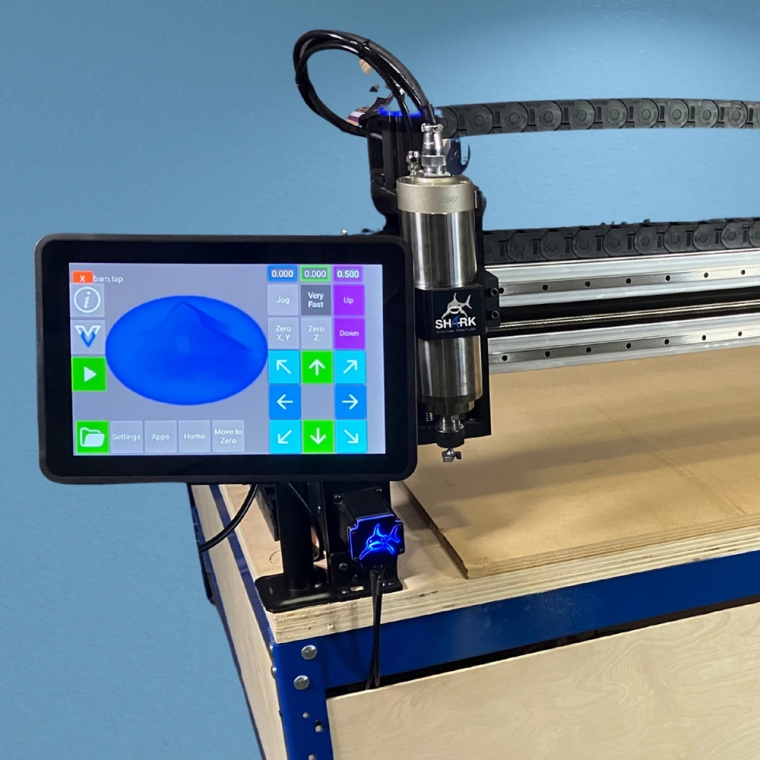

• 10.1'' color-enhanced touch screen pendant controller

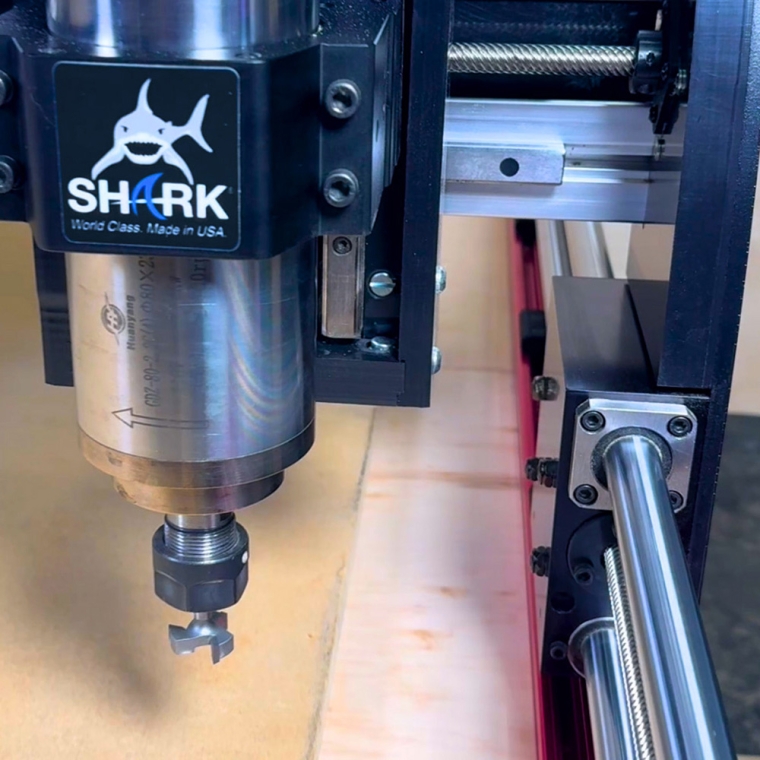

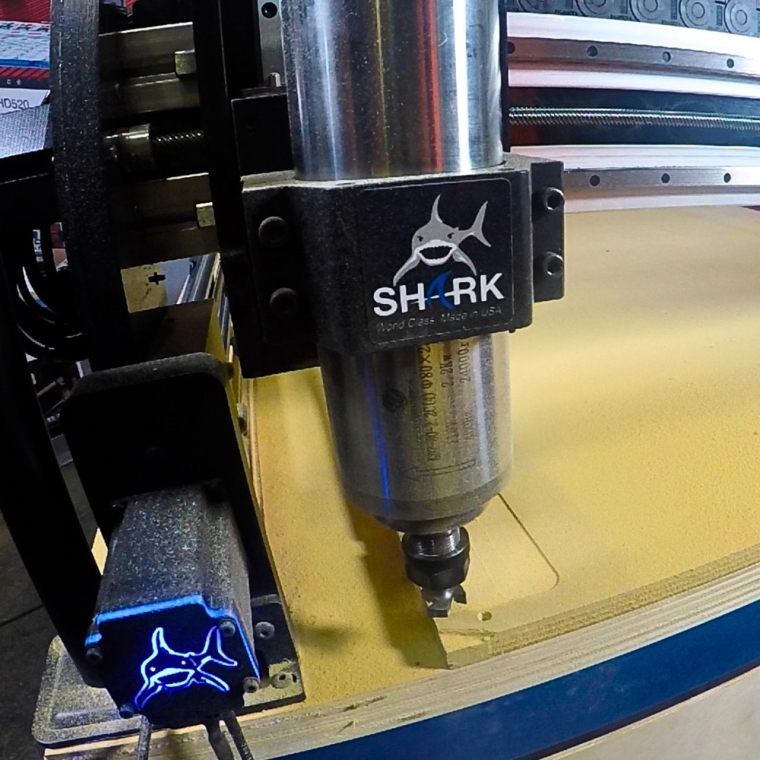

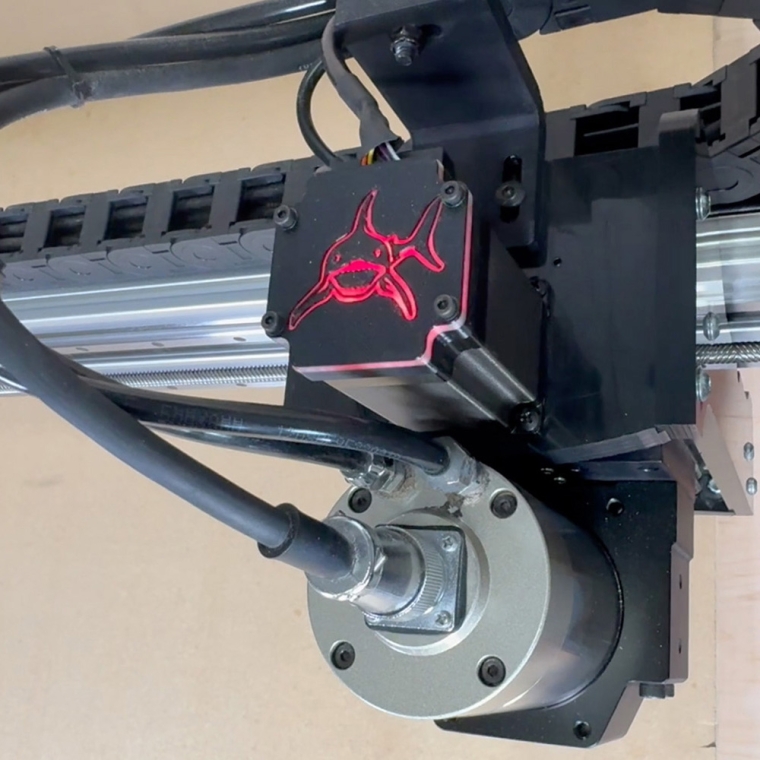

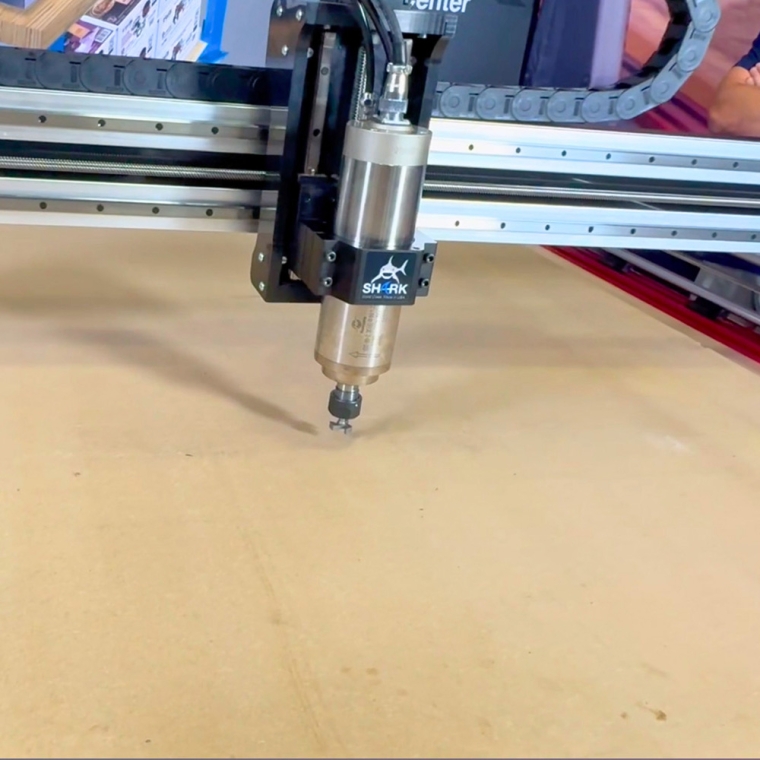

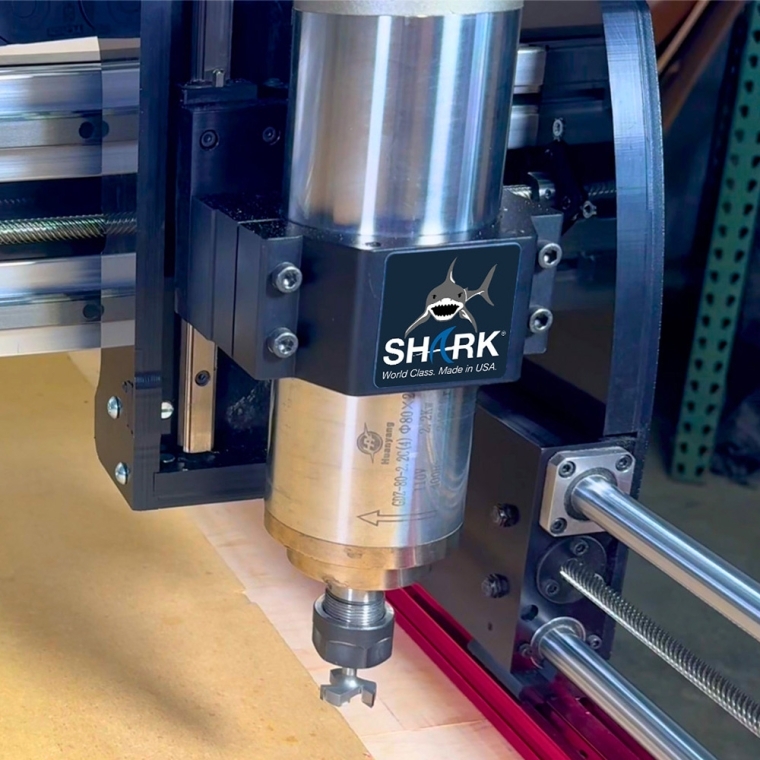

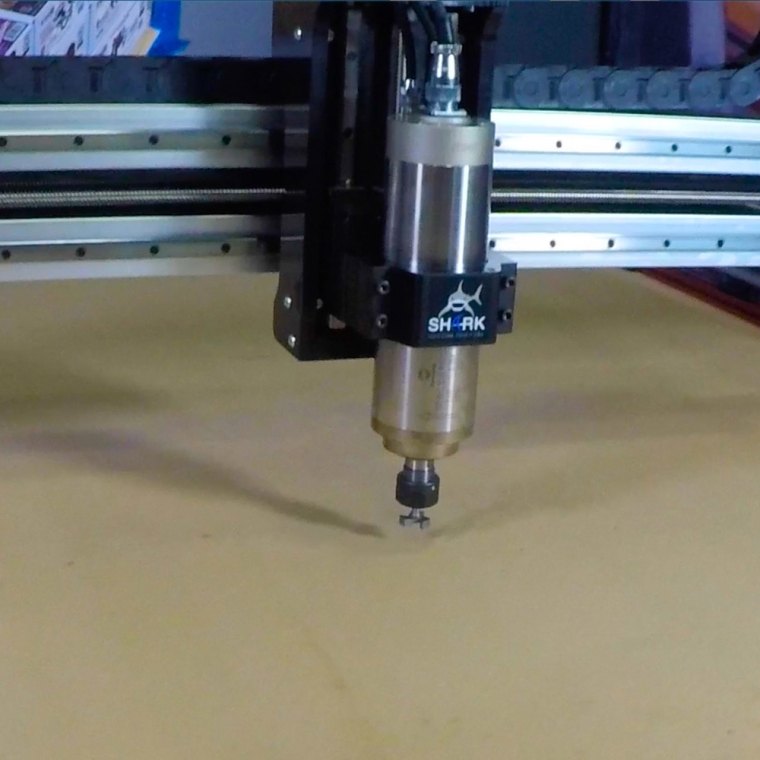

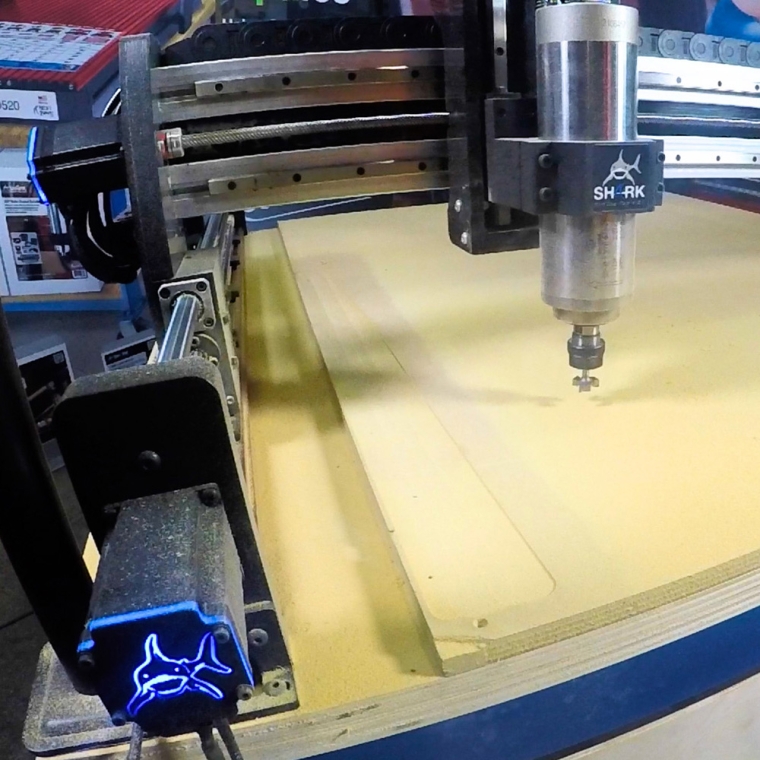

• 3HP water-cooled spindle for industrial-quality durability; automatic spindle on/off control

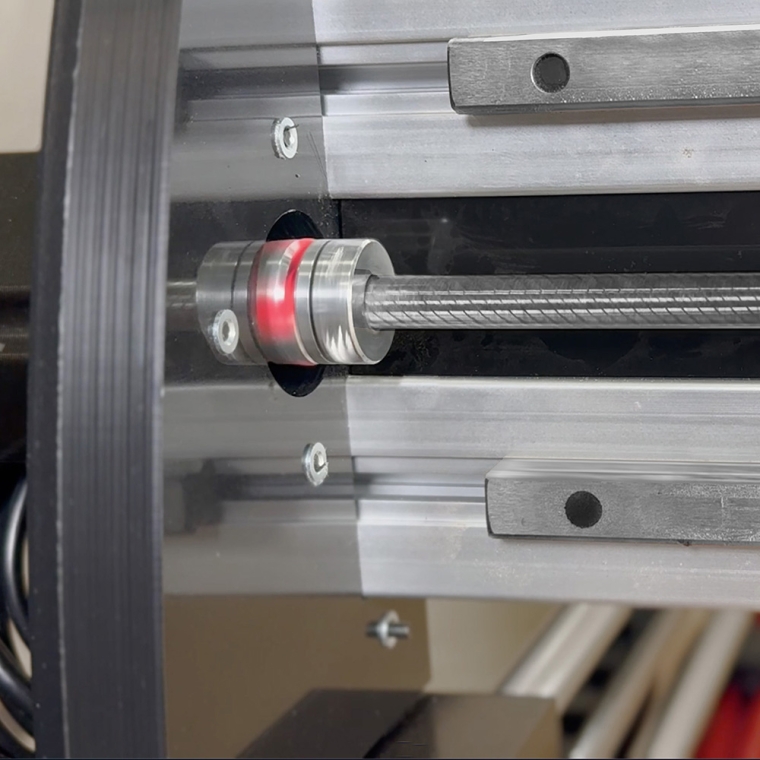

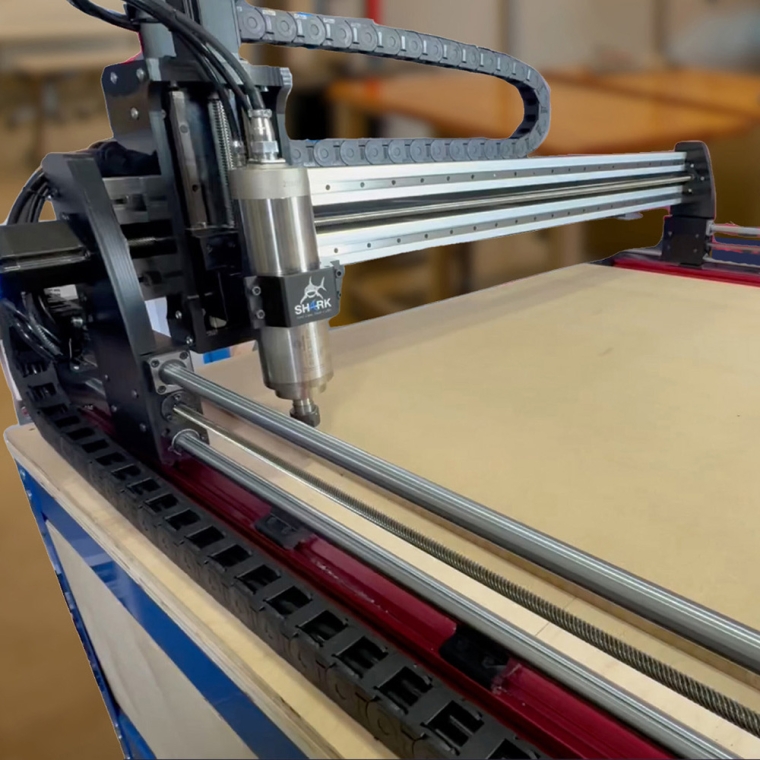

• High-speed leadscrews are compensated on all three axes for anti-backlash and wear

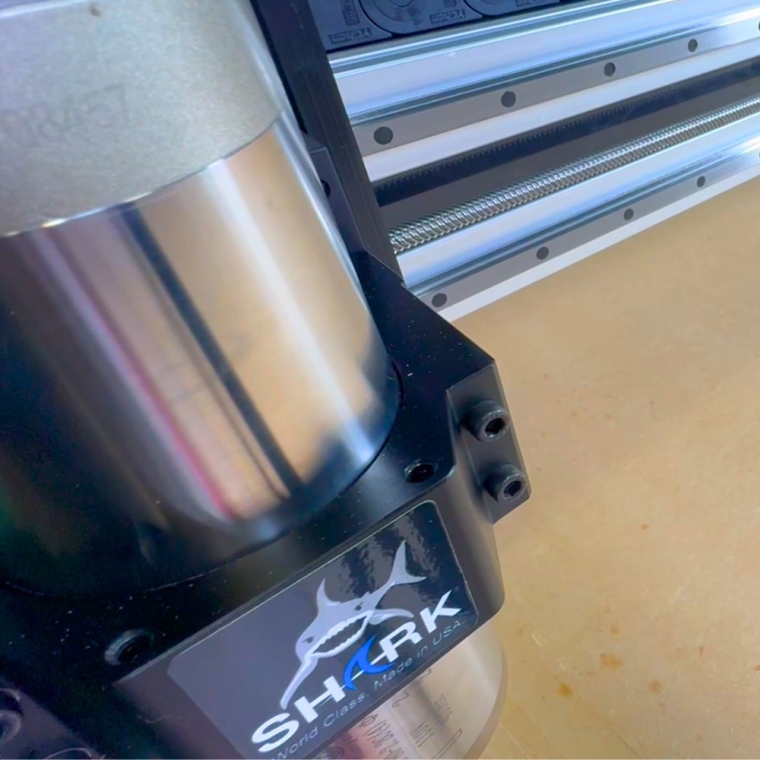

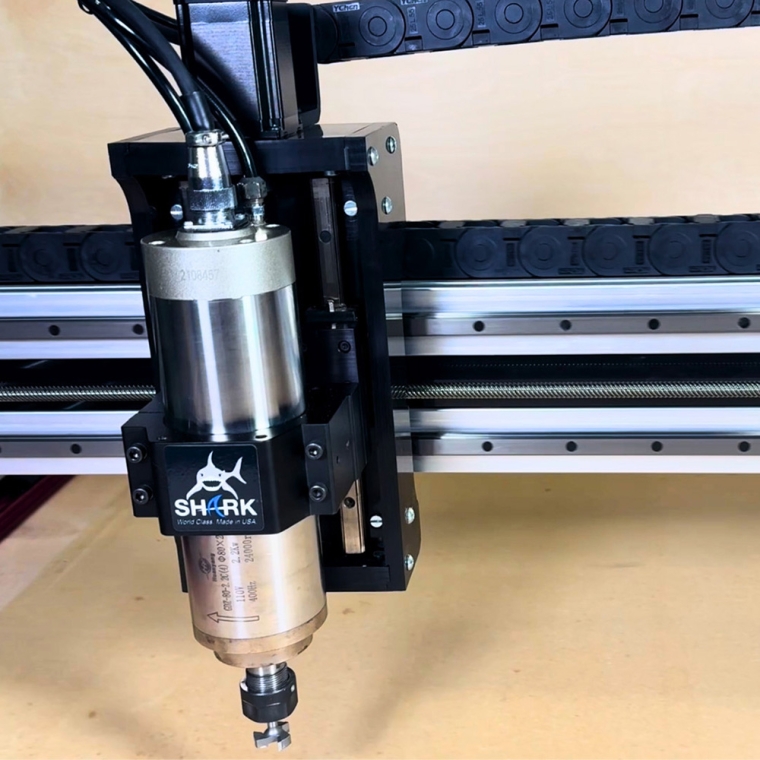

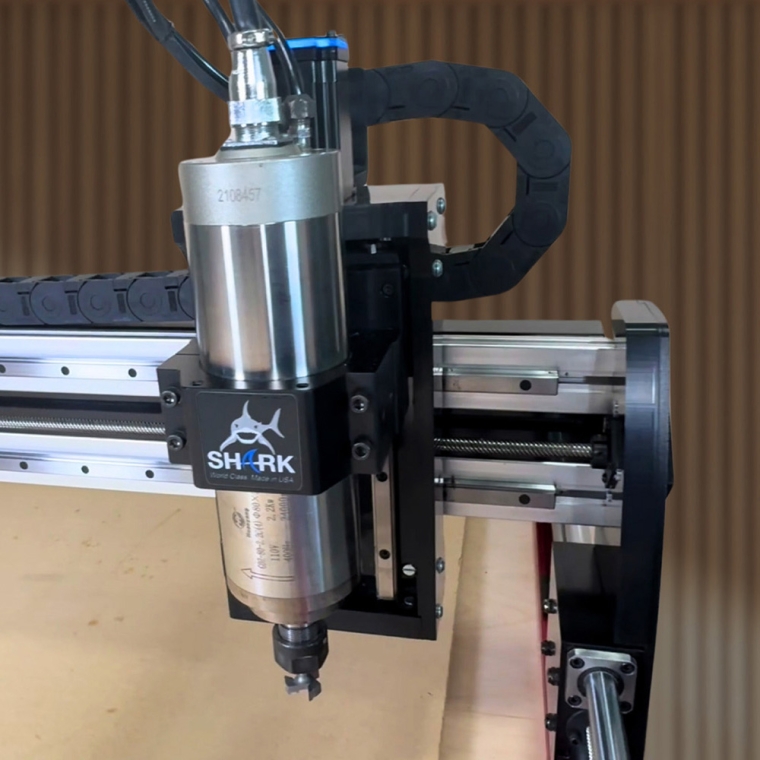

• Rugged aluminum spindle mounting clamp
• Fully closed loop drive system
• Patented Virtual Zero Unlimited software lets you map the surface of your material with an unlimited number of reference points. The program then uses these points to auto adjust the G-code to conform to the actual surface of your material, eliminating problems caused by a warped or bowed workpiece ($149 retail value)
• Ready2Control computer control panel software included
• Program restart capability anywhere inside the G-code
• Heavy-duty load protection with auto compensation
• X, Y and Z homing capability
• Power interruption protection
• Wifi enabled
• Visual runtime display for convenient project monitoring
• USB ports for connecting to a keyboard, mouse, flash drives or other peripherals
• Compatible with all Next Wave CNC accessories
• Two-year warranty ($499 retail value)
• Made in the USA

Note: Requires installation on a sturdy shop table with a top measuring at least 64'' x 64''.
