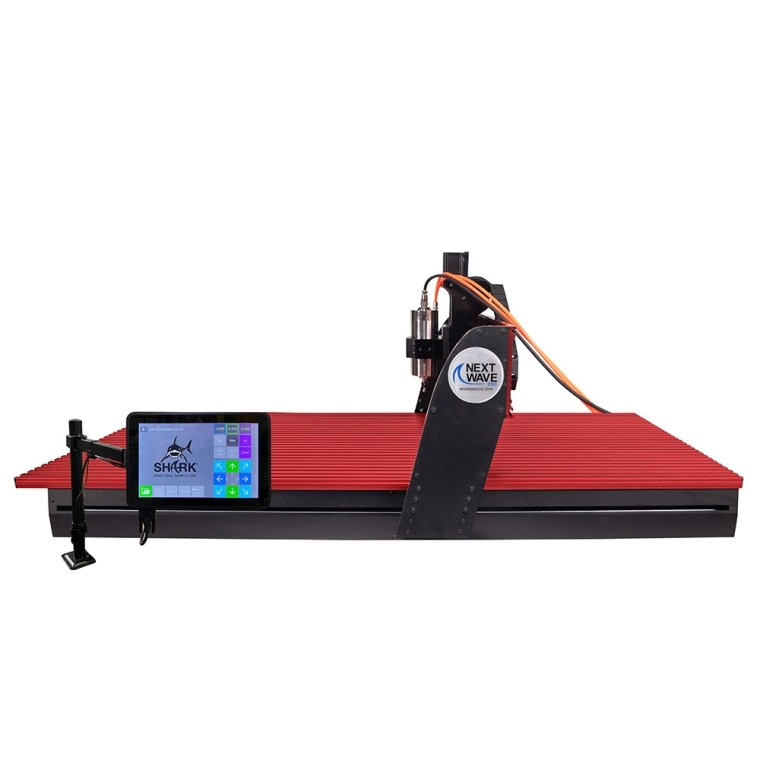

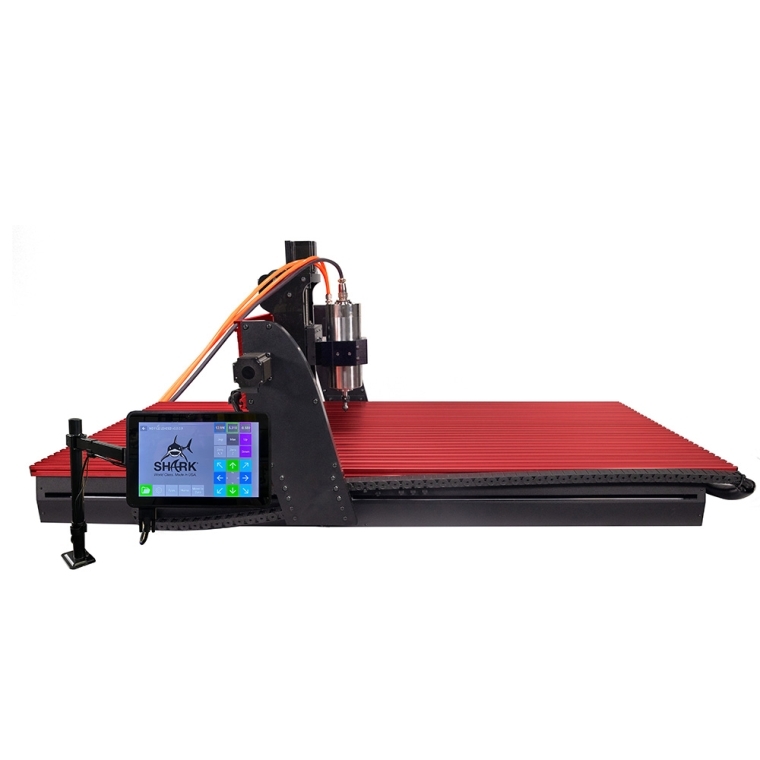

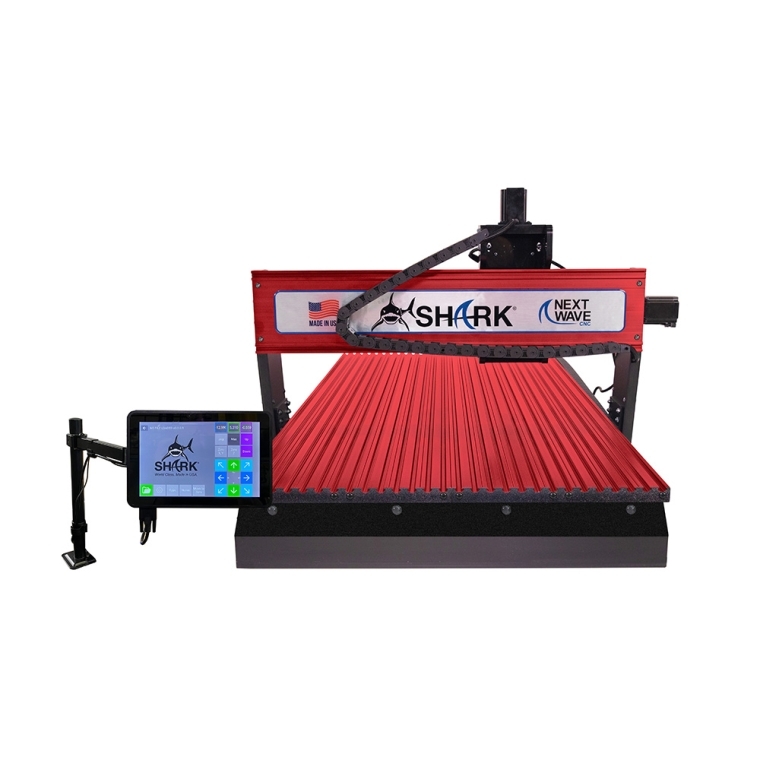

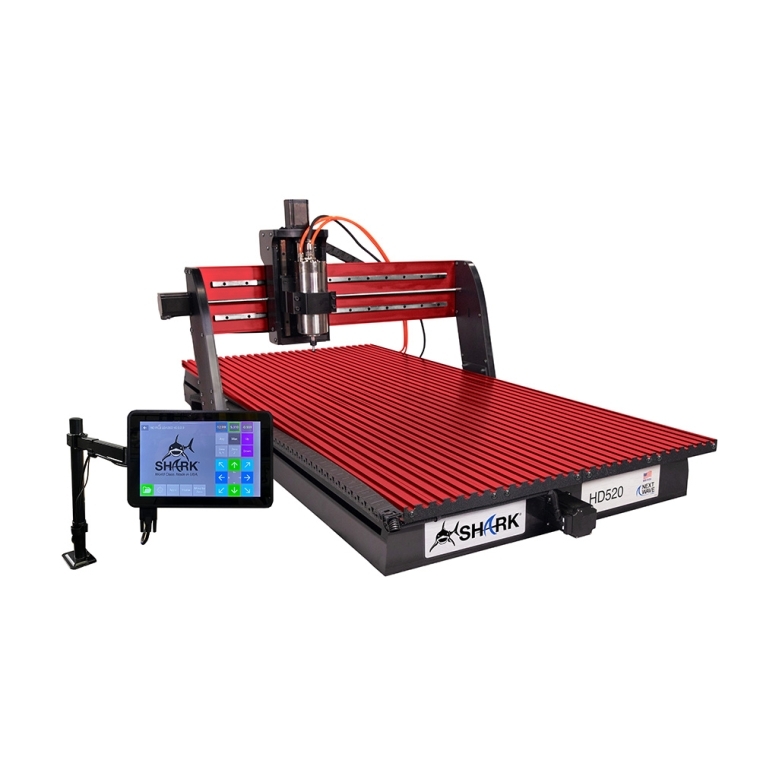

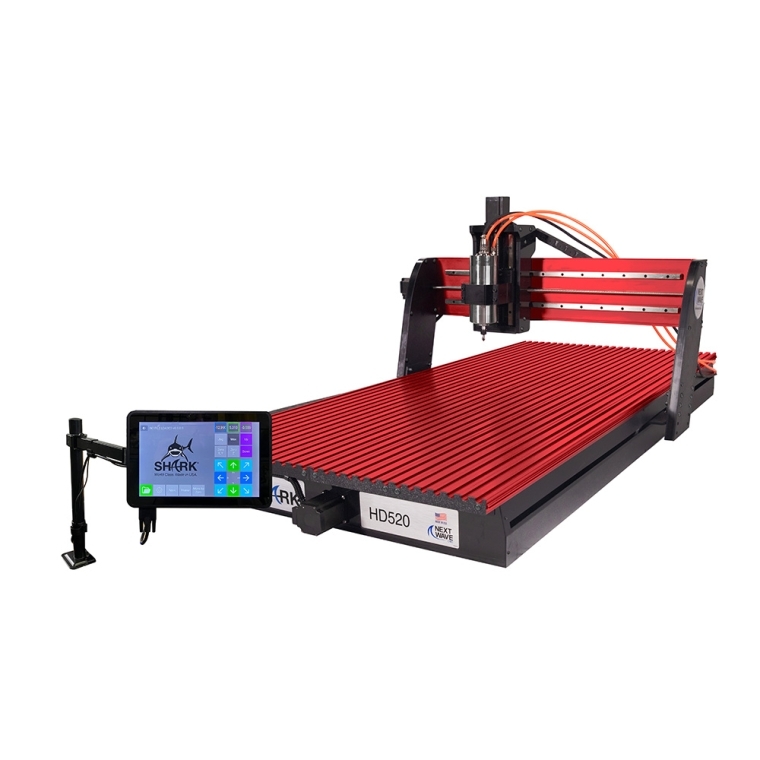

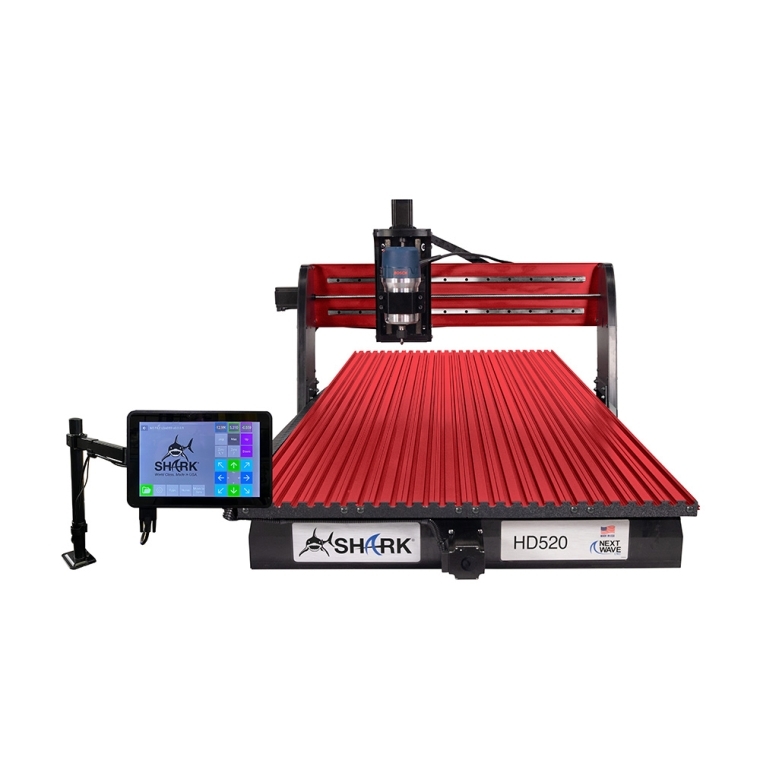

Next Wave CNC Shark HD520 Plus

The Next Wave Shark HD520 Plus makes an exceptionally versatile machining and duplication tool. It delivers all the capabilities of an HD520 model and is even easier to use, thanks to an included 10.1'' Touch Screen Pendant (#79437). A 2HP Water-Cooled Spindle Kit (#69338) provides rugged performance without the ear-splitting noise of a standard router. This CNC Shark can shape, drill, carve, dado and rabbet a huge variety of projects made from wood, soft metals, composites or plastics. It features a full 50'' of Y-axis travel and robust, industrial-grade components: a heavy-duty aluminum- and steel-reinforced gantry, an extruded aluminum router mount, interlocking aluminum table, linear rails and guides, and anti-backlash, wear-compensated lead screws on all axes. Even better, it ships standard with everything needed to get started: the latest version of Vectric V-Carve design software, two hold-down clamps, a carbide V-bit, and Next Wave CNC's exclusive, patented Virtual Zero Unlimited software. It's fully compatible with an extensive line of accessories: laser, 4th axis, Shark Tooth drawing tool, and more. Made in the USA and backed by a full two-year warranty and lifetime technical support.

Next Wave CNC Shark HD520 Plus Details:

• Features a 28'' x 63'' aluminum interlocking slotted table that allows highly customizable clamping and a dead-flat worksurface
• 10.1'' Android-based, color-enhanced Touch Screen Pendant (#79437) eliminates the need for a separate PC controller—just transfer your project to a USB drive and plug it into the Pendant
• Robust linear gantry rails and an aluminum router mount that supports the included 2HP Water-Cooled Spindle Kit (#69338)
• Liquid-cooled brushless spindle for durability and 75% quieter operation than a standard router
• Can also be computer-controlled to take advantage of the Virtual Zero Unlimited, which adjusts your design to fit curves and angles that would be nearly impossible on other brands of machines (computer and flash drive not included)
• Steel encased gantry legs for increased rigidity
• Removable steel base shields minimize dust and debris
• Linear ball bearing carriages and guide rails
• Aluminum gantry backplate for heavy machining capabilities
• Perfect for projects such as carving plaques, signs and ornamental boxes
• Patented Virtual Zero Unlimited software lets you map the surface of your material with an unlimited number of reference points. The program then uses these points to auto adjust the G-code to conform to the actual surface of your material, eliminating problems caused by a warped or bowed workpiece
• Using the included 3D carving capability and a 3D model library, you can cut beautiful relief carvings, intricate inlays and create exquisitely detailed engravings with ease
• Includes the latest V-Carve Desktop Design software incorporating Cut 3D functionality, Rotary compatible and Vector Art 3D Sampler Pack
• Ready2Control software
• Includes two hold-down clamps and carbide V-groove bit
• 2-year factory warranty
• Made in USA
• U.S.-based technical support
