Magswitch Drill Press Fence Pro

Item #
77486

Powerful switchable magnets allow easy positioning and removal of both fence and stop—fits medium- to large-sized drill presses.

More details
$288.00
How do you want your item?
Delivery
Check In-Store Availability
As soon as today
As soon as today
Check availability in your nearest store

Expert Advice

Mastering woodwork: Expert insights revealed

Contact Us

Satisfaction Guarantee

Enhance your product’s protection and durability

Click Here

Family Run

Passion passed down through generations

Read More

Crafting with Wood: Turn Your Ideas into Reality

Create with wood! Our premium materials make your projects come to life...Read More

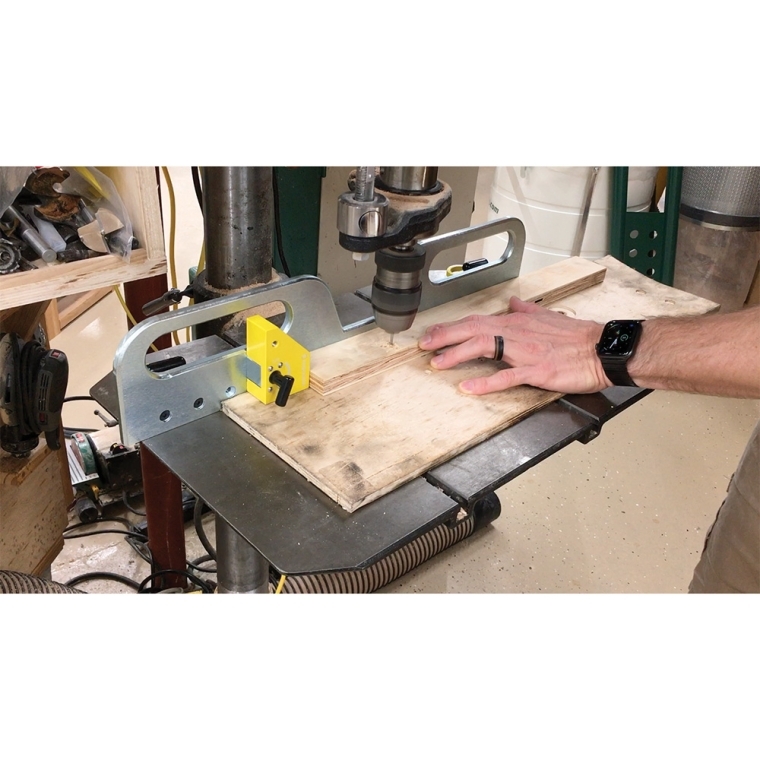

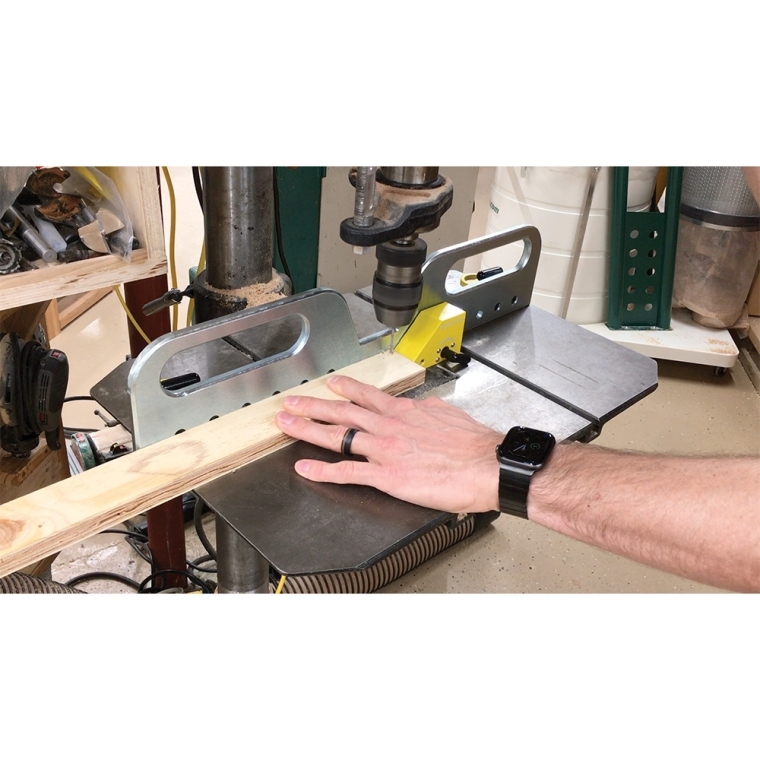

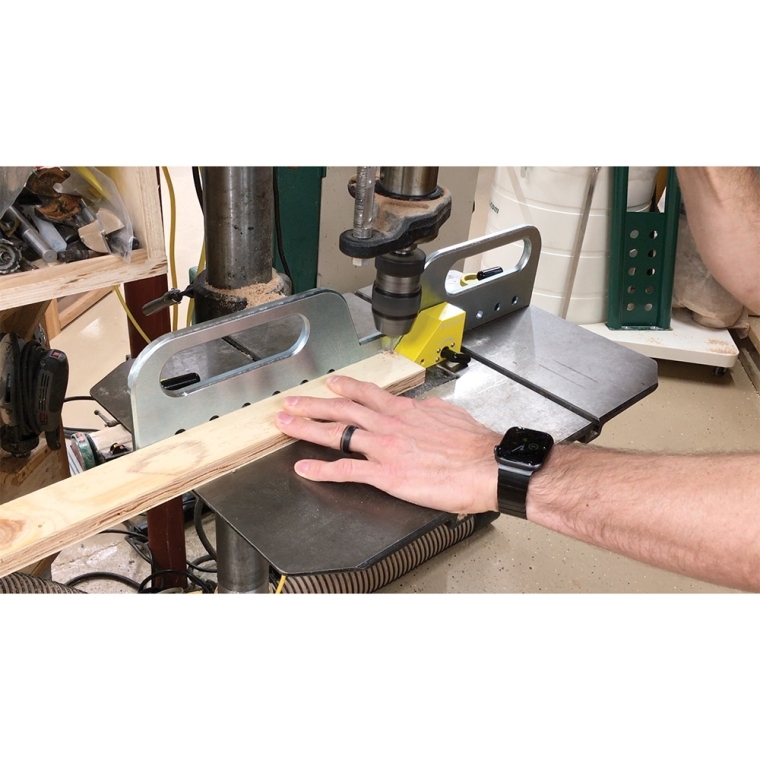

With the Magswitch Drill Press Fence, you get easy positioning of the fence with a quick turn of one or both magnetic switches. Best of all, if you need to remove the fence, a common requirement for large work, it's every bit as easy. Just rotate the magnetic switches and remove the fence—there is no need to unscrew any lengthy bolts. The fence includes a magnetic stop block that can be positioned anywhere along the face. Fence face measures 21'' long x 4-5/16'' high—a perfect fit for medium- to large-sized drill presses. The generous height also allows use as a bandsaw resaw fence.

Features:

  • Powerful magnets allow quick positioning, fine adjustments, and make it easy to remove and store when not needed
  • Mounting magnets can be positioned at different points on the fence for optimal placement on various drill press tables
  • Vertical face has a center cutout to prevent interference with the drill chuck, generous height allows use as a bandsaw resaw fence
  • Stop block can be quickly positioned flush with the drill press table or sacrificial material under the workpiece, and stores on the back when not needed
  • Fence face measure 21'' long x 4-5/16'' high

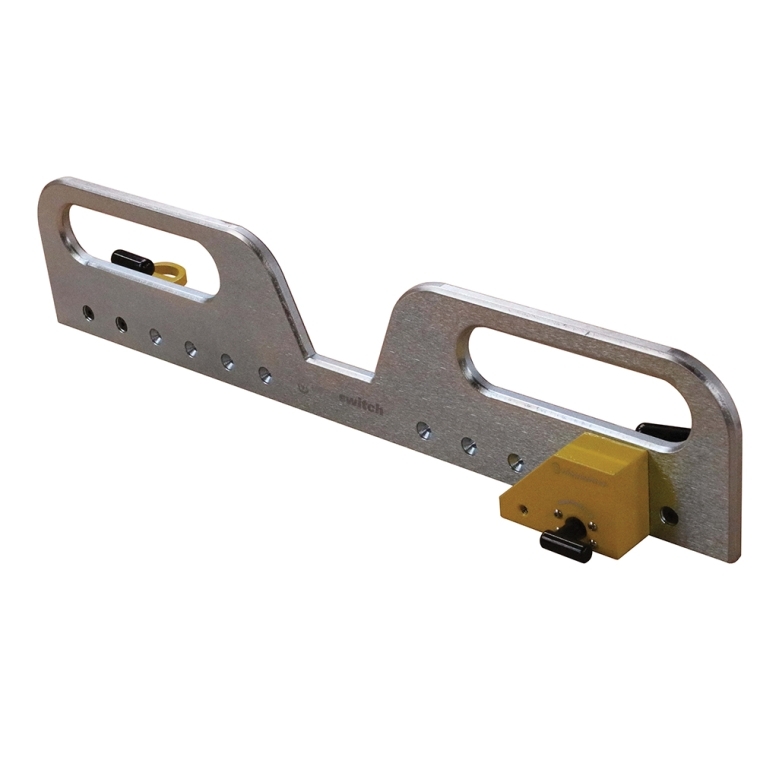

Magswitch Drill Press Fence Pro
(1) Pro fence plate
(2) Fence plate magnets
(1) Magnetic stop block
(1) Replacement rubber gasket for fence magnets

More Information
Brand Magswitch
Manufacturer Part Number 81101371
Weight 9.85
Tech Spec Tech Specs:
  • Brand: Magswitch
  • Manufacturer Part Number: 81101371
  • Fence Face Dimensions: 21'' long x 4-5/16'' high
  • Maximum Breakaway Force: 291.01 lbs / 132 kg
  • Maximum Shear: 41.89 lbs / 19 kg
  • Full Saturation Thickness: 0.24'' / 6 mm
  • Overall Height (Max): 4.29'' / 109 mm
  • Overall Length: 21'' / 533.4 mm
  • Overall Width: 2.72'' / 69.15 mm
  • Net Weight: 8.38 lbs / 3.8 kg
  • Magnetic Pole Footprint: 1.57 x 1.22 (2x)'' / 40 x 31 (2x) mm
Unit of Measure Each
