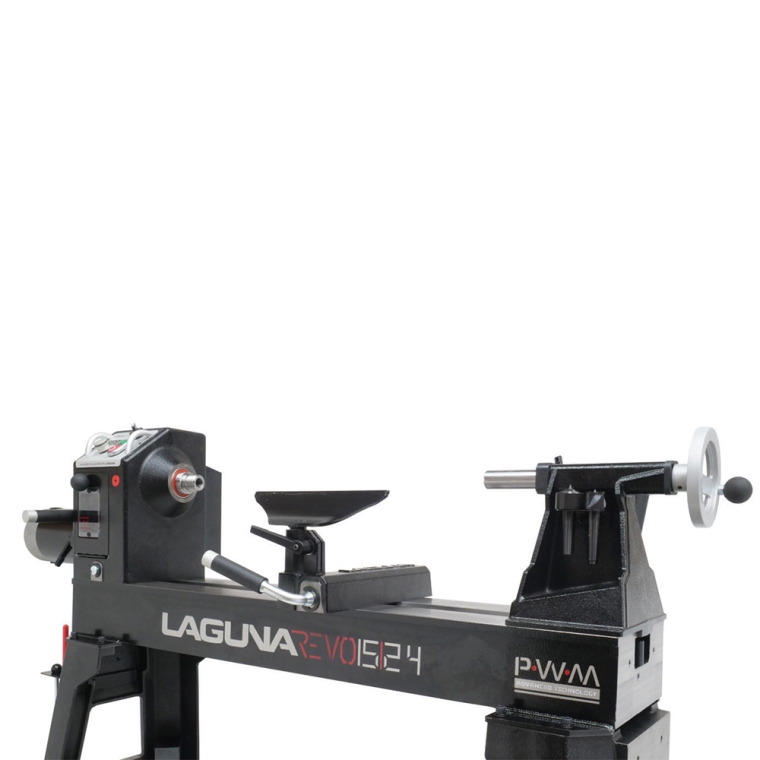

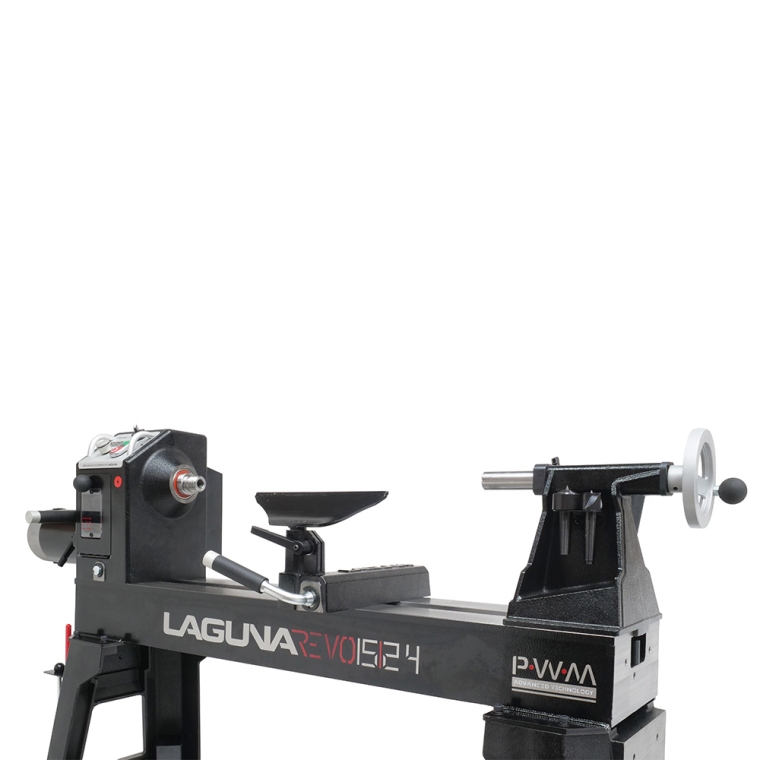

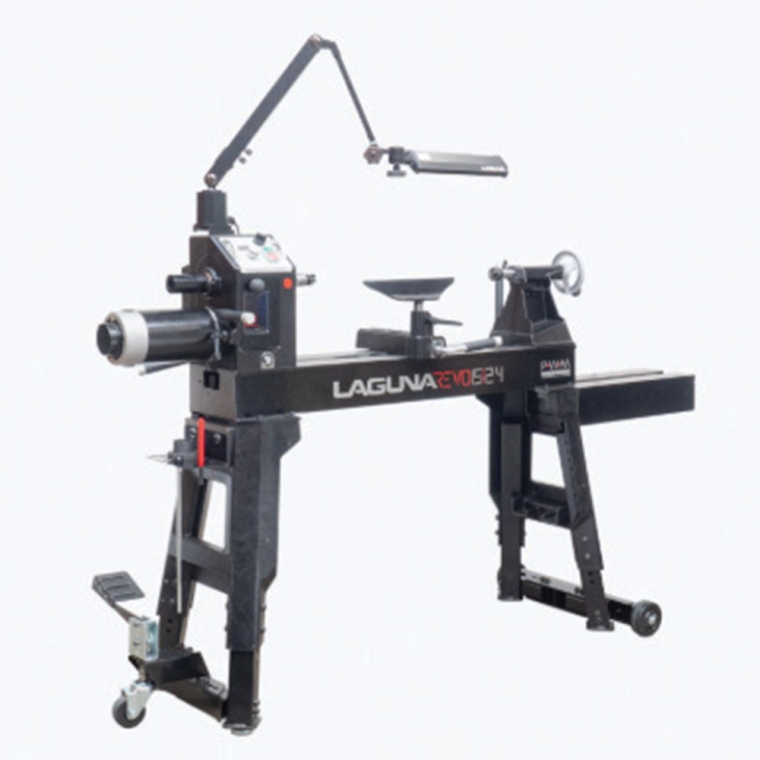

Laguna Revo 15|24 110V Lathe

Item #
BDL69390LR

A mid-sized lathe with world-class fit and finish, electronic variable speed, and extraordinary torque even at low speeds.

More details

As low as $2,299.00

$2,299.00   Laguna Revo 15|24 110V Lathe (69390)
Summary

    Total $2,299.00

    Ships directly from the manufacturer.
    How do you want your item?
    Delivery
    Check In-Store Availability
    As soon as today
    As soon as today
    Check availability in your nearest store

    Expert Advice

    Mastering woodwork: Expert insights revealed

    Contact Us

    Satisfaction Guarantee

    Enhance your product’s protection and durability

    Click Here

    Family Run

    Passion passed down through generations

    Read More

    Crafting with Wood: Turn Your Ideas into Reality

    Create with wood! Our premium materials make your projects come to life...Read More

    For woodturners looking for a mid-sized lathe that doesn't compromise on features and power, the Revo 15|24 from Laguna Tools is a powerful contender. The 15|24 features the same world-class fit and finish turners have come to appreciate in the legendary 18|36, but in a smaller package that appeals where space is a concern. It has a sliding headstock for fast setups and infinite electronic variable speed from 50 to 4,200 RPM, accessible by simply turning the dial and/or adjusting the 3-step pulley. Even at low speeds, the lathe boasts extraordinary torque. The adjustable-height legs let you tailor your working position for maximum comfort, and the steel bed provides strength, stability and a smooth sliding surface for the banjo. A cutting edge feature is the patent-pending Precise Point, which lets you align the tailstock quill precisely with the headstock center.

    Features:

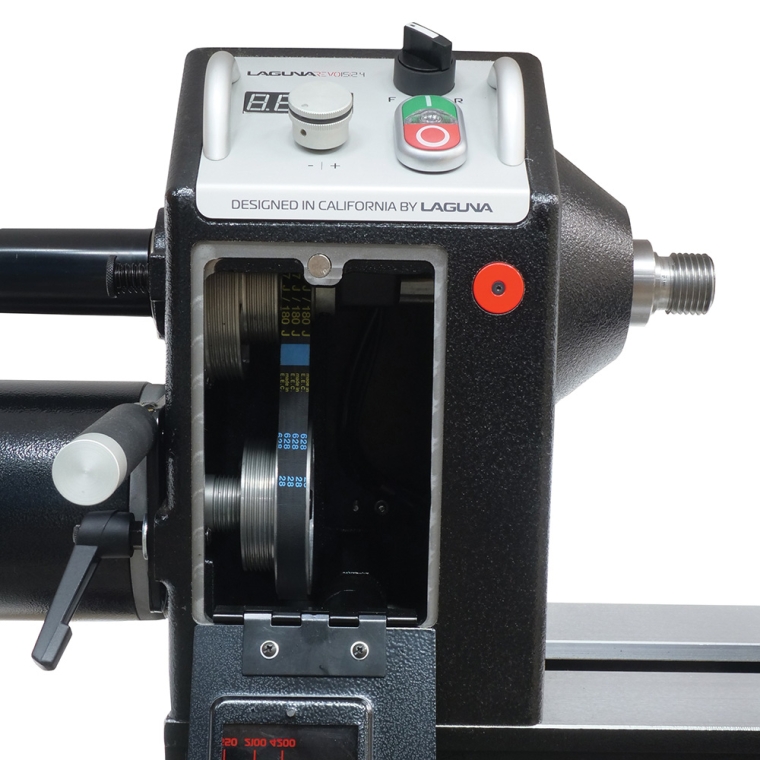

    • Infinite electronic variable speed from 50 to 4,200 RPM with dial and 3-step pulley
    • Extraordinary torque even at low speeds, thanks to Laguna Pulse Width Modulation

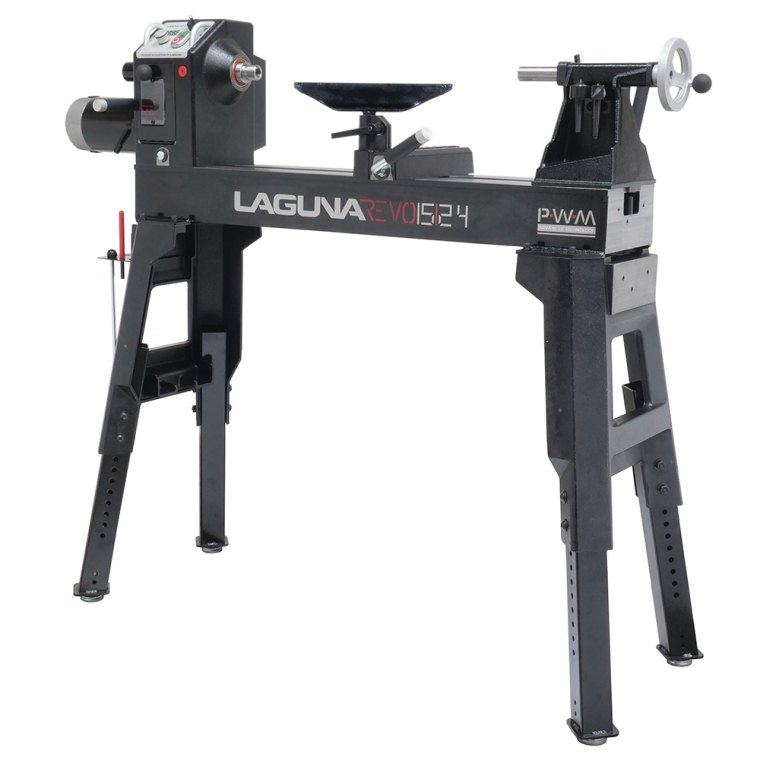

    • Adjustable-height legs allow a more ergonomic working position tailored to individuals needs

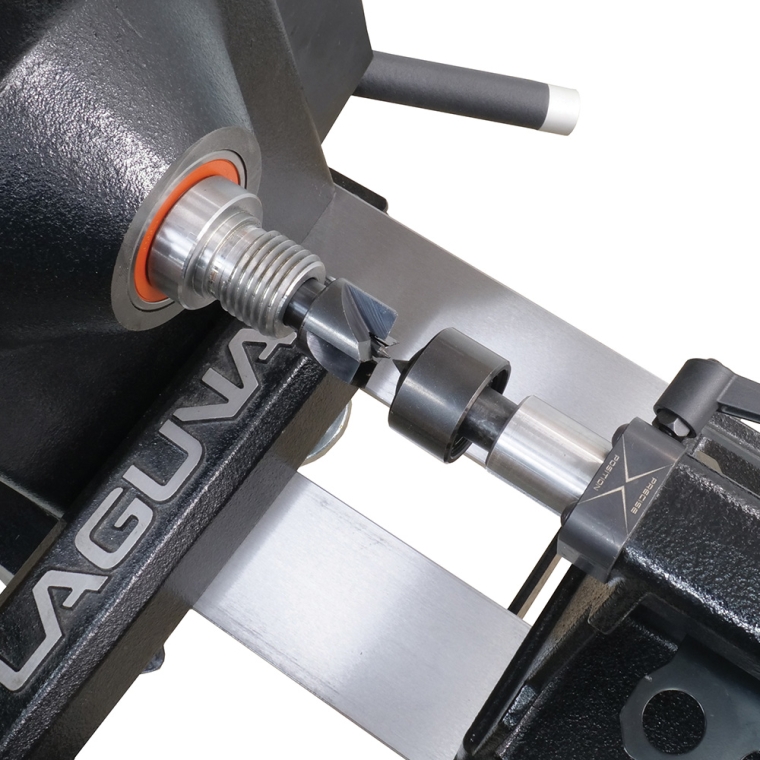

    • Patent-pending Precise Point that lets you dial in the tailstock quill to meet with the headstock center

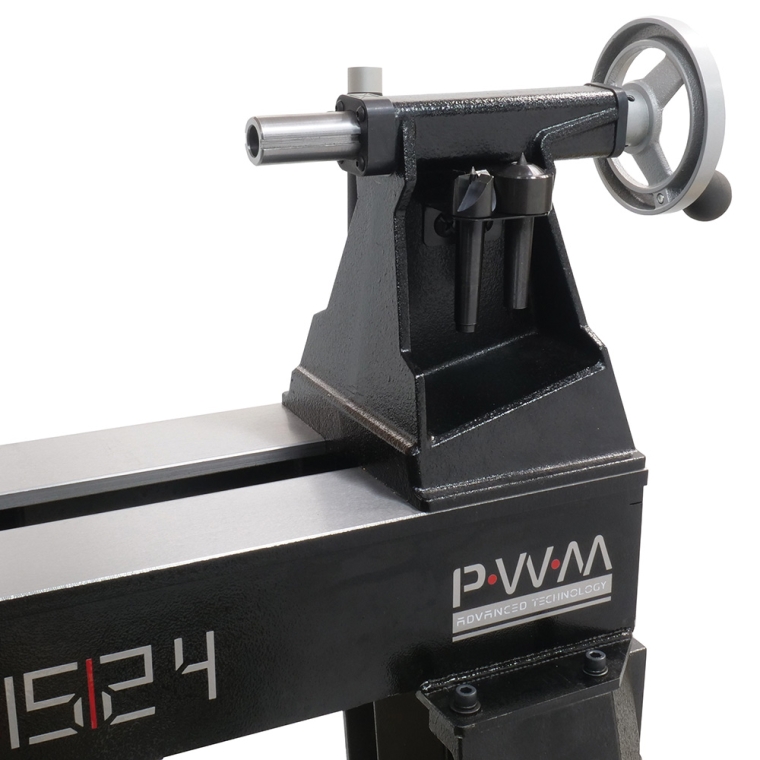

    • Onboard storage for centers in the tailstock
    • Headstock slides smoothly on the steel bed

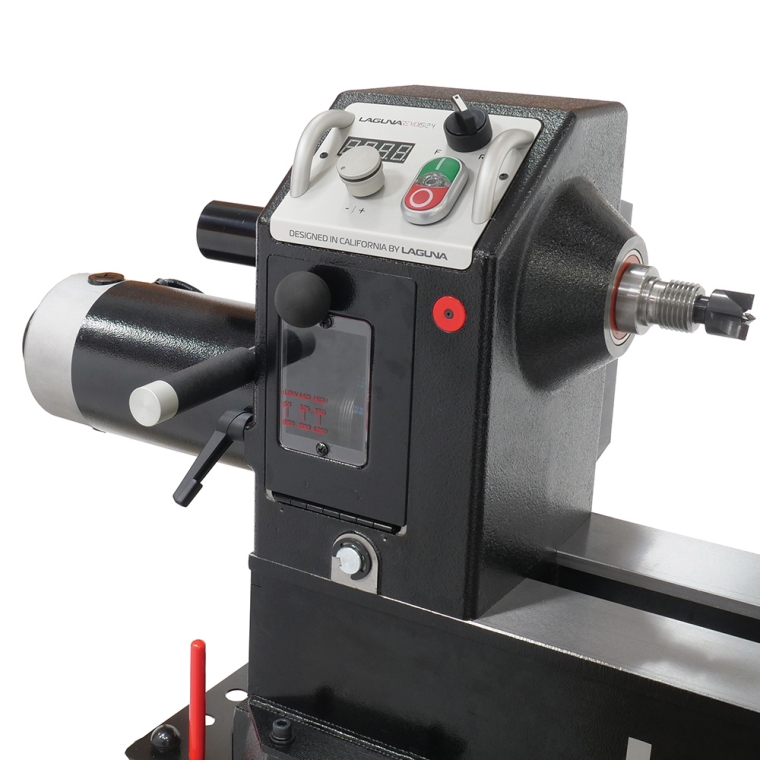

    • Spring-loaded spindle lock

    (1) Laguna Revo 15|24 110V Lathe

    Standard Manufacturer's Warranty: 24 months once registered in the first 30 days

    More Information
    Brand Laguna
    Manufacturer Part Number MLAREVO1524110
    Tech Spec
    • Electrical: 1.5HP, 110 Volt, 8 Amp, 60 Hz.
    • Motor: Permanent Magnet DC, 2150 RPM
    • PWM: Pulse Width Module Speed Control
    • Recommended Breaker: 15 Amp
    • Swing over Bed: 15-1/2''
    • Swing over Banjo: 11-3/32''

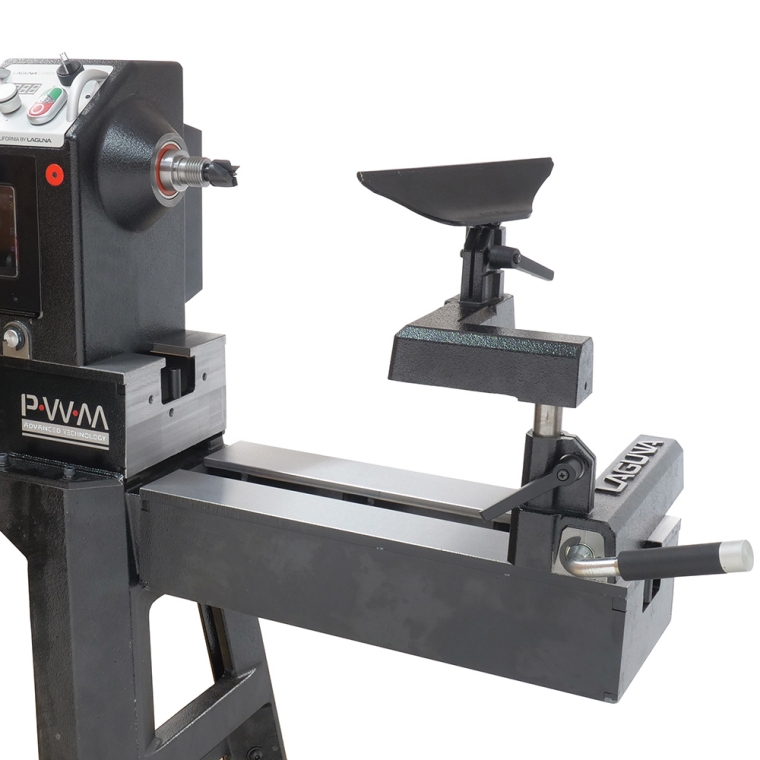

    • Max. Outboard Swing with Optional Bed Extension (#64726): 25''
    • Tool-Rest Post Size: 1''
    • Tool-Rest Length: 12''
    • Spindle Taper: MT#2
    • RPM High: 650-4200
    • RPM Mid: 325-2100
    • RPM Low: 50-650
    • Tailstock Quill: 4-1/2'', Self-Ejecting
    • Floor to Spindle Center Low: 36.4''
    • Floor to Spindle Center High: 51.4''
    • Floor to Bed Min.: 28.6''
    • Floor to Bed Max.: 43.6''
    • Front Bearing: TPI Taiwan 6206LLU
    • Rear Bearing: TPI Taiwan 6205LLU
    • Spindle Index #: 24 w/Lock
    • Distance Between Centers: 24''
    • Headstock/Tailstock Through-Bore: 3/8''
    • Headstock Travel: Full Length
    • Spindle Size: 1-1/4'' X 8TPI RH
    • Floor Space: 60''W x 22''D x 56''H
    • Box Dimensions: 52''L x 22''W x 22''H
    • Weight Net/Ship: 288/302 Lbs.
