Kreg MortiseMate Loose Tenon Jig
Item #
76108
Use you hand drill to quickly create mortises for precise, strong loose-tenon joinery—three mortise size options fit Kreg MortiseMate fluted hardwood loose tenons.
More details
$299.00
How do you want your item?
Check In-Store Availability
Check availability in your nearest store
Crafting with Wood: Turn Your Ideas into Reality
Create with wood! Our premium materials make your projects come to life...Read More

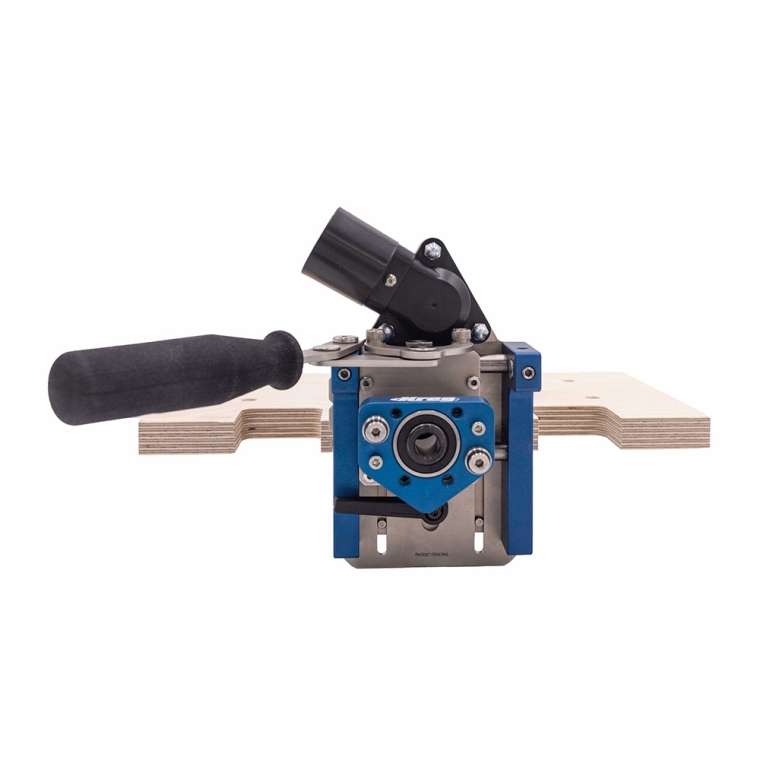

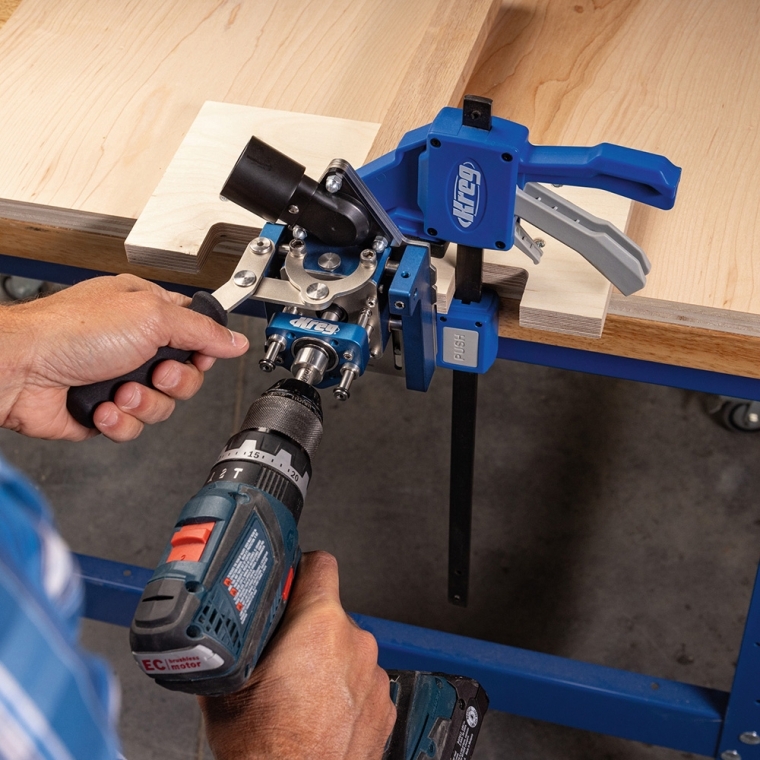

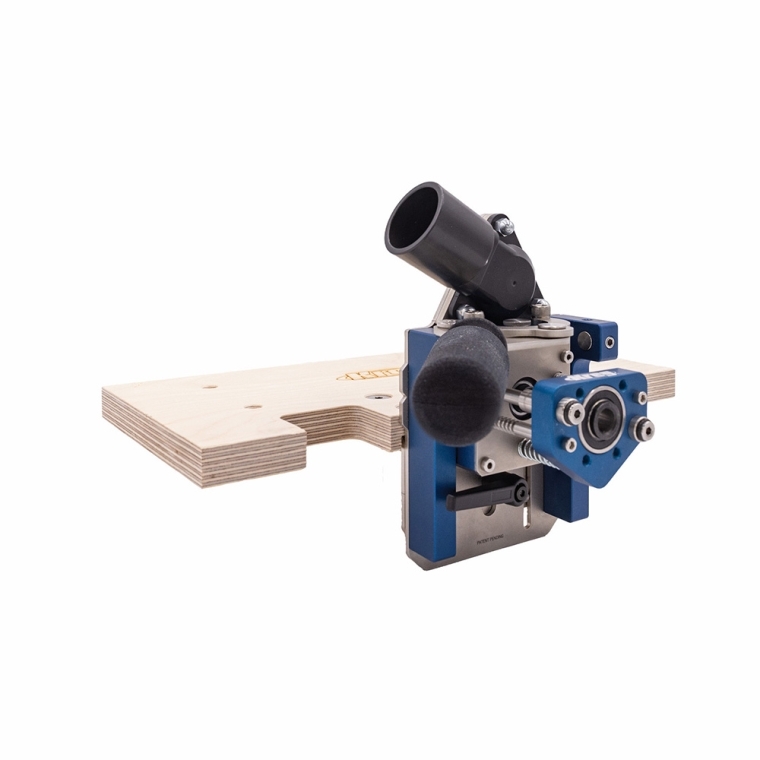

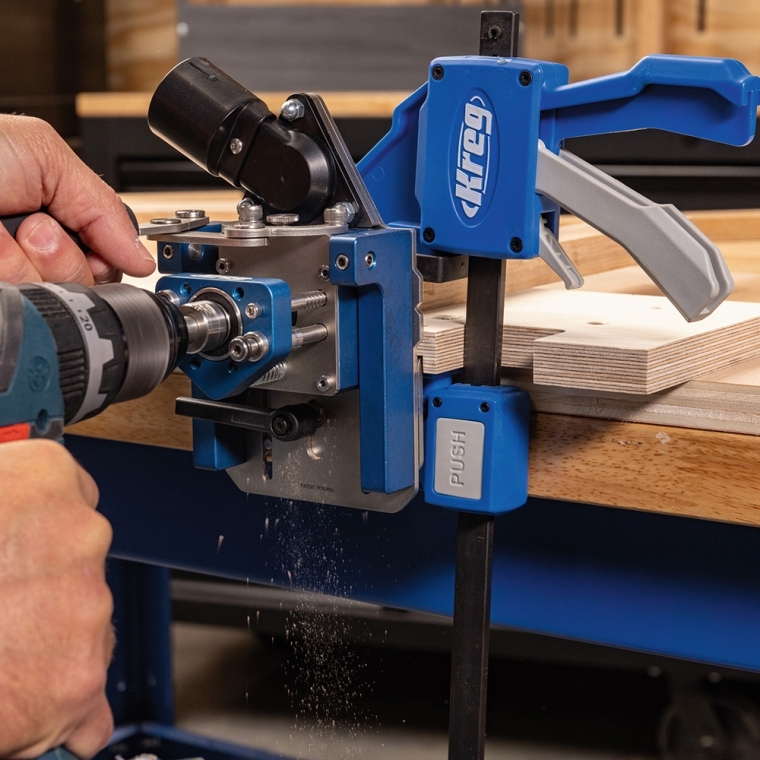

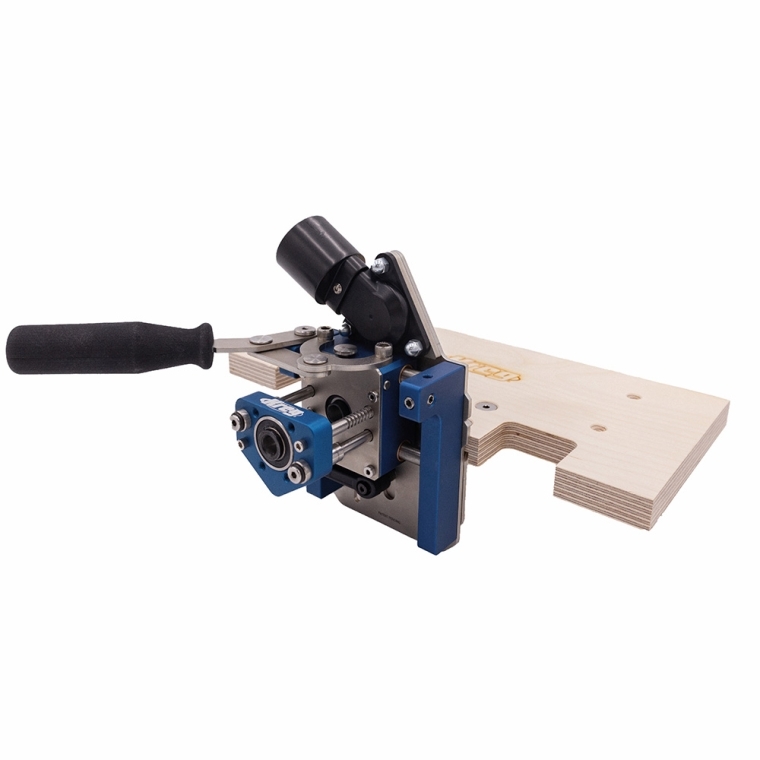

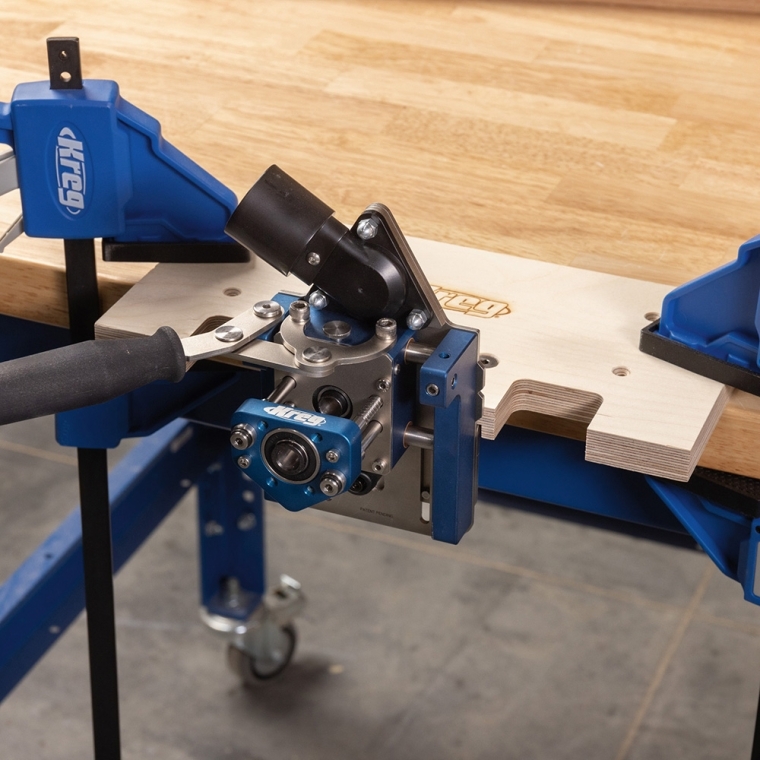

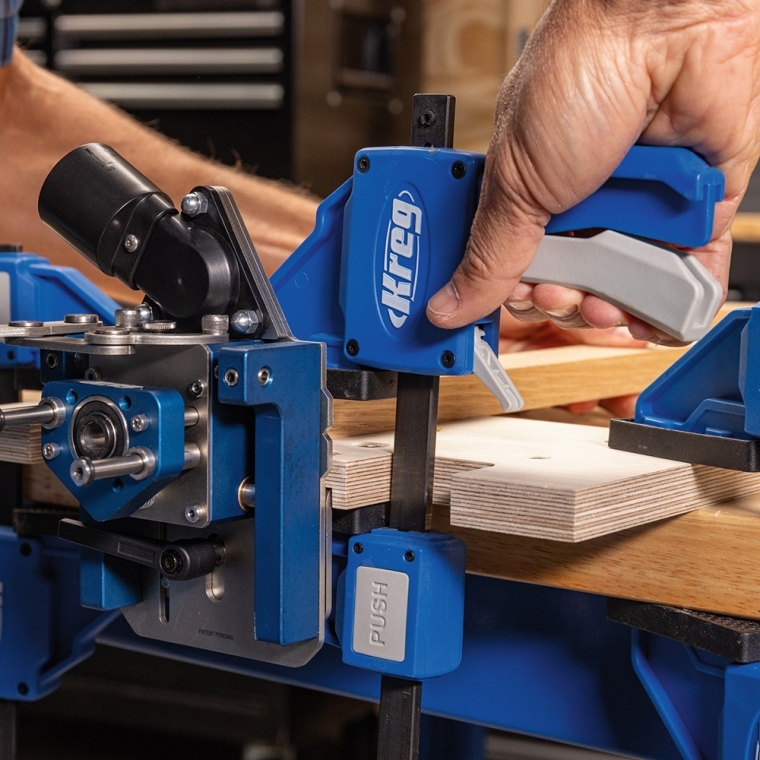

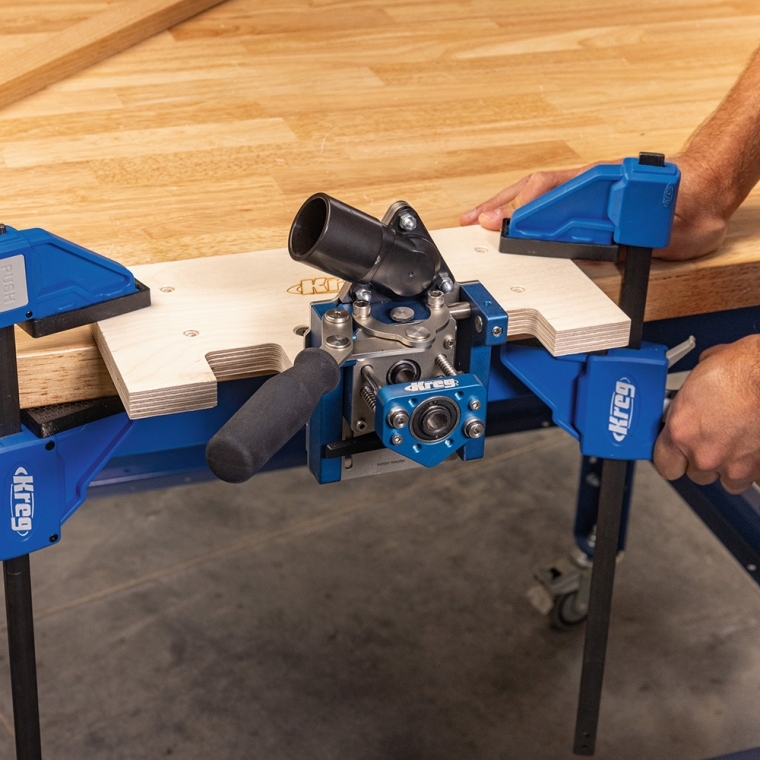

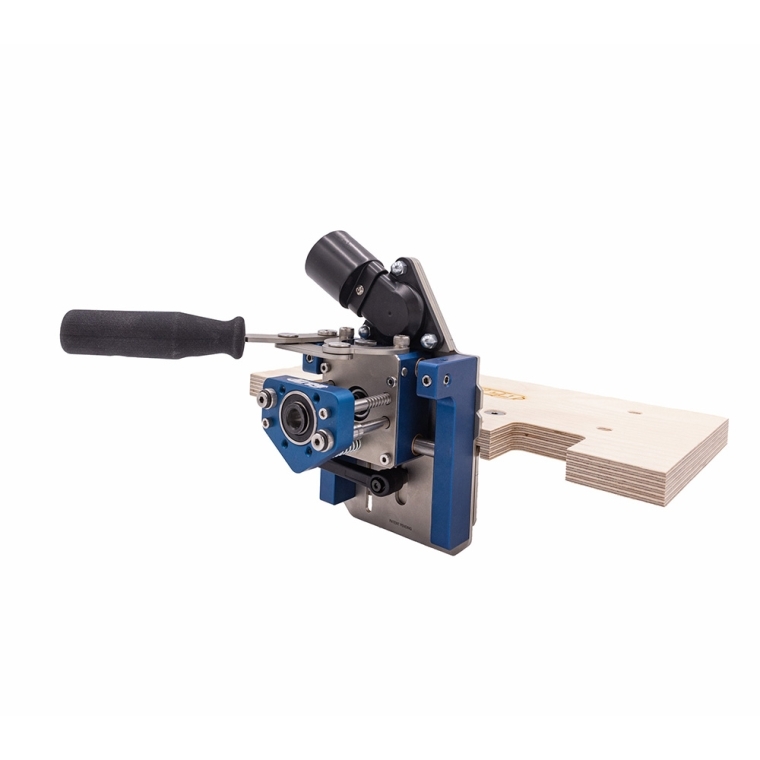

The Kreg MortiseMate Loose Tenon Jig lets you create loose tenon joints in end or edge grain with unmatched ease, combining the precision of a router with the simplicity of a drill. Its integrated plywood platform allows for clamping or fastening the jig to a worksurface as well as clamping workpieces in position for mortising. With a MortiseMate carbide-tipped cutter installed in your corded or cordless drill and its depth collar set to the mortise depth you need, boring a mortise is as easy as running the drill at full speed and swinging MortiseMate's handle to the left and right, repeatedly, to cut the mortise to width. Its exclusive auto-indexing step-down mechanism also advances the cutter deeper into the workpiece by 1/16'' (0.050'') per pass until the full mortise depth is reached. A pair of micro-adjustment screws let you adjust the width of the mortise as desired for a tighter fit with Kreg's 6mm, 8mm or 10mm hardwood loose tenons (#76762, #76416 or #72391, sold separately).
Kreg MortiseMate Loose Tenon Jig Details:
- Jig cuts mortises for loose-tenon joinery using your corded or cordless drill and interchangeable carbide-tipped cutters
- Suitable for workpieces from 1/2'' to 1-1/2'' thick
- Auto-indexing step-down mechanism advances cutting depth in 1/16'' increments to bore clean, crisp mortises
- Laser-etched markings on the cutter make it quick and easy to position the stop collar for common mortise depths
- Create narrower mortises for tighter-fitting tenons using two built-in micro-adjust screws

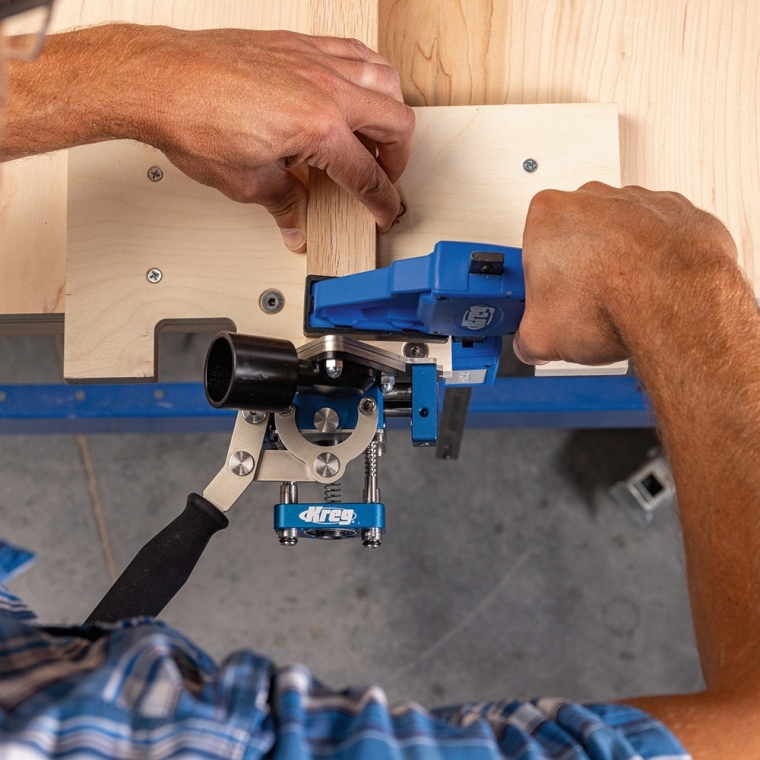

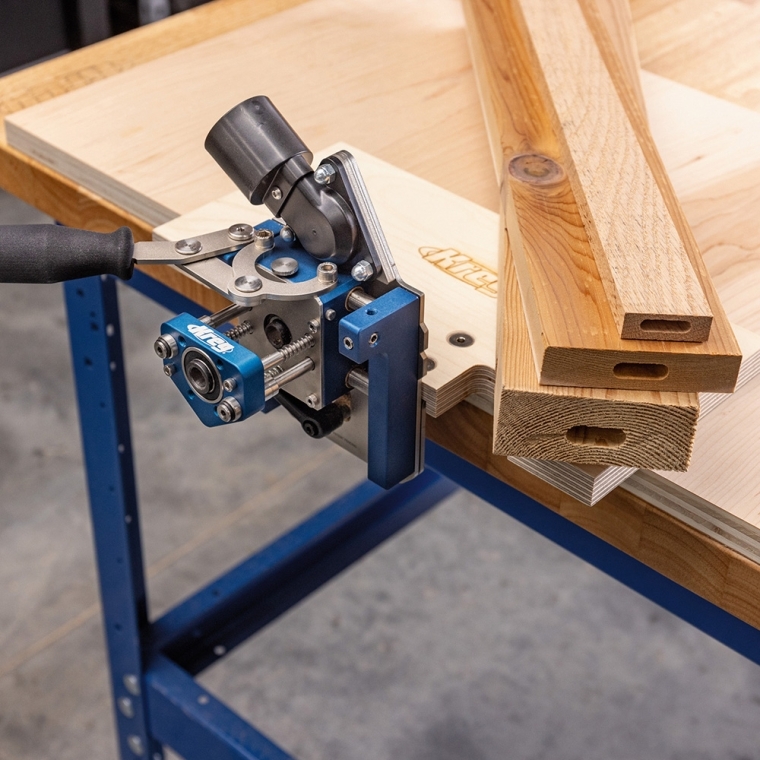

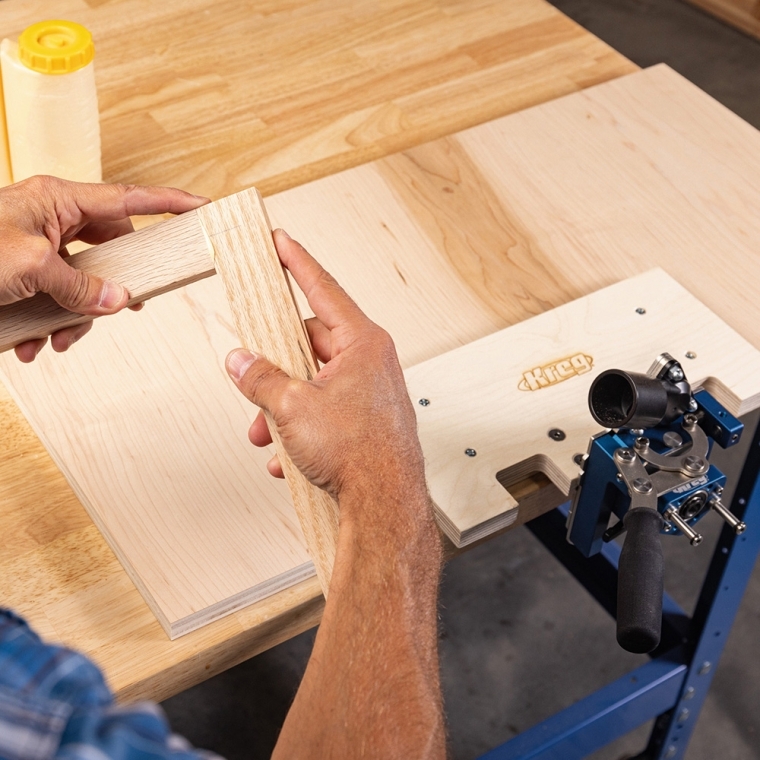

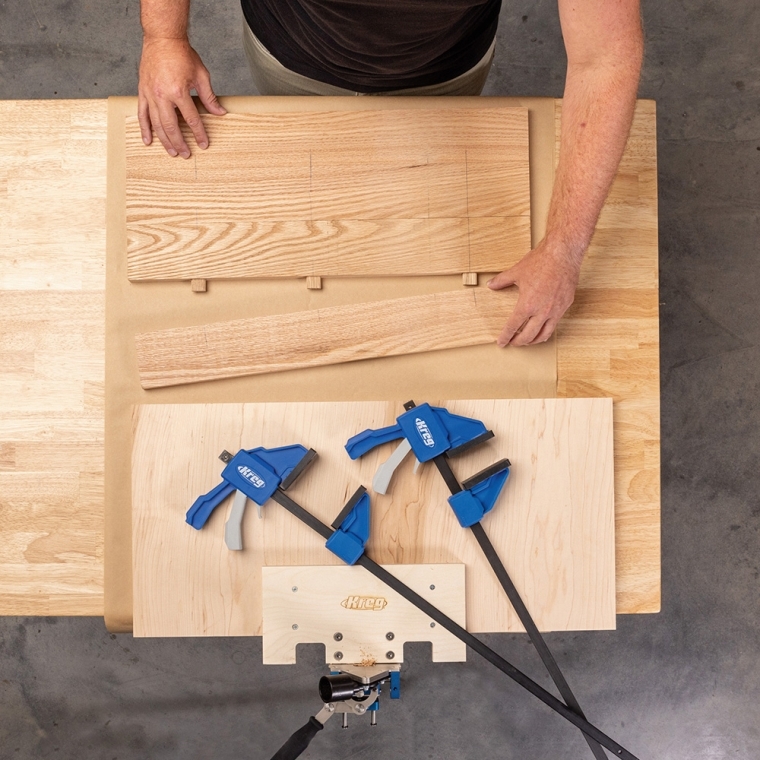

- Integrated plywood mini work surface makes setup simple and quick to clamp workpieces in place for drilling
- Laser-etched markings on jig enable accurate centering and workpiece placement
- 6mm Dia. cutter (#73589) included; 8mm (#77948) and 10mm (#73157) cutters are sold separately
- 1-1/4'' I.D. dust port connects to your vacuum hose for clearing debris

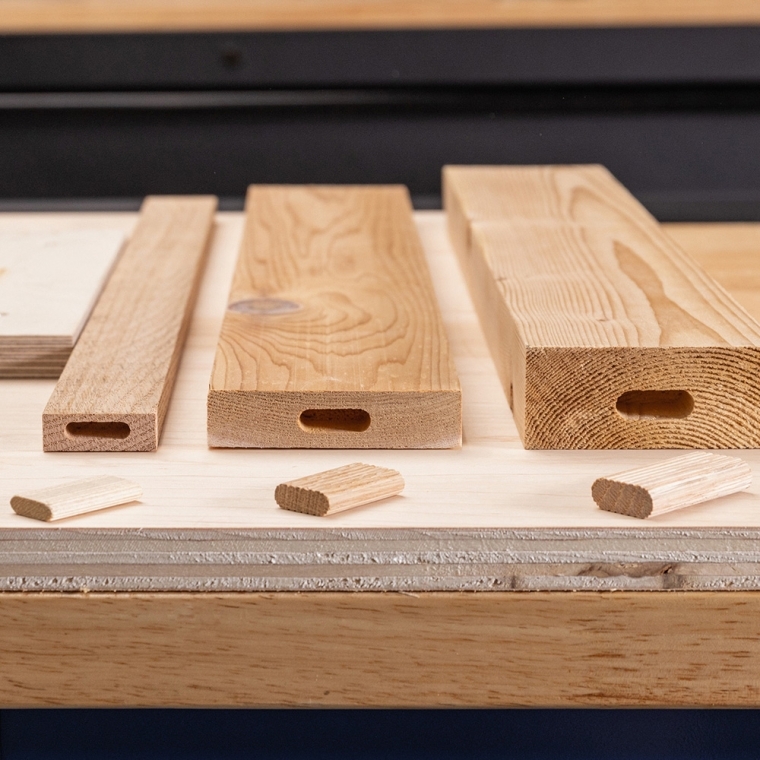

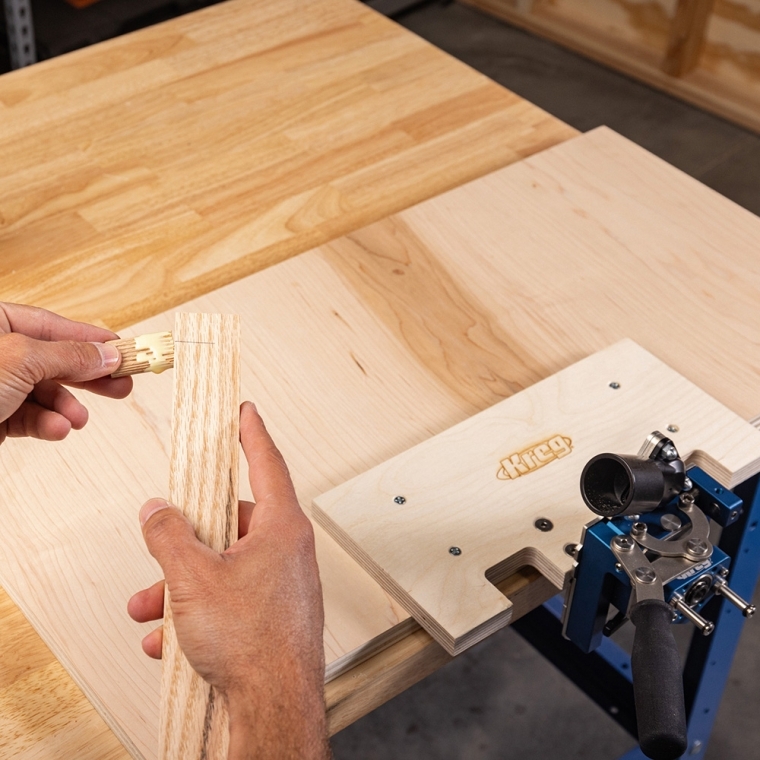

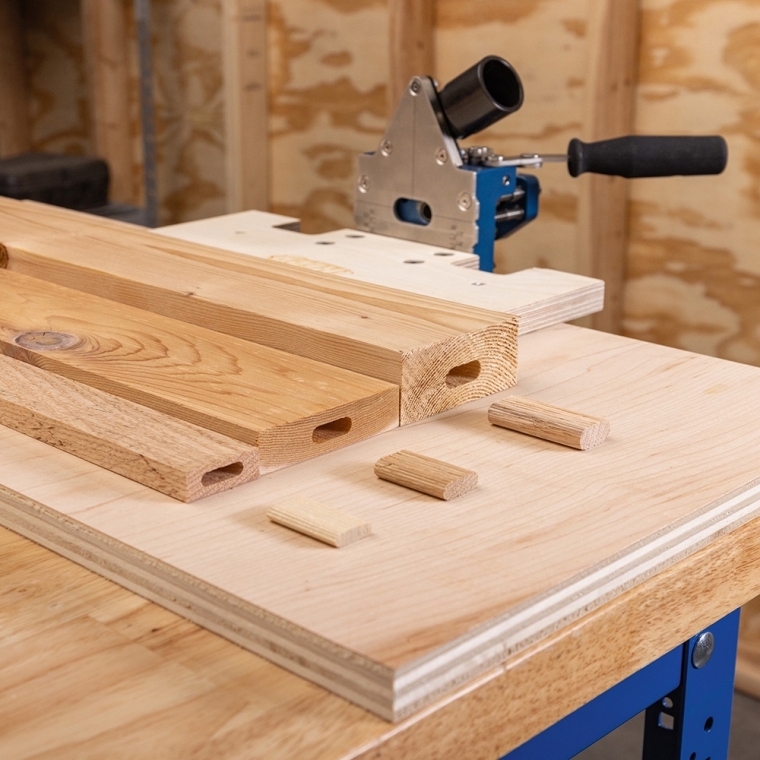

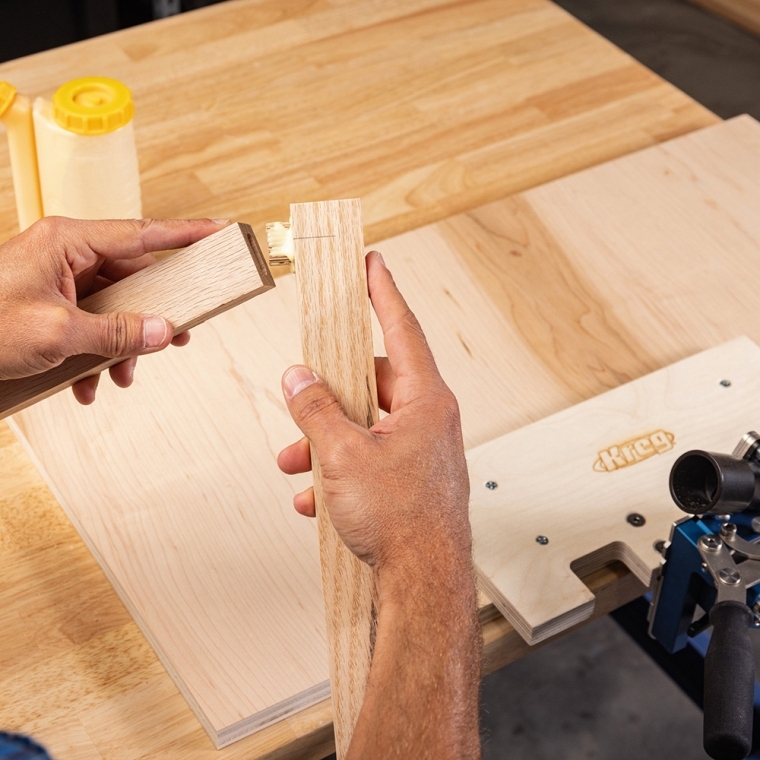

- Mortises fit MortiseMate 6mm, 8mm or 10mm fluted hardwood Loose Tenons (#76762, #76416 or #72391, all sold separately)

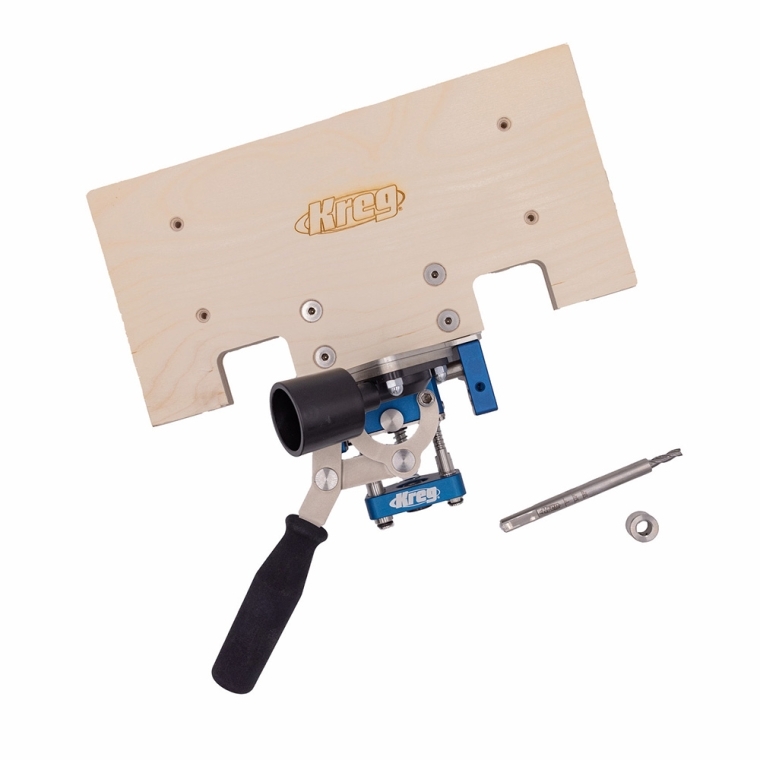

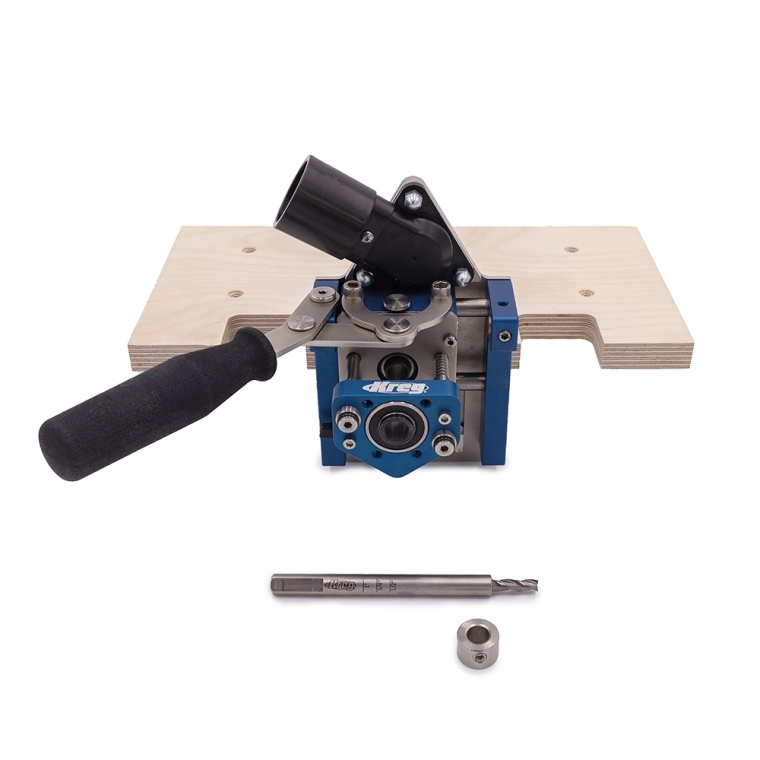

Kreg MortiseMate Loose Tenon Jig
(1) Kreg MortiseMate Loose Tenon Jig
(1) MortiseMate 6mm Mortising Cutter with stop collar
(1) Plywood mini work surface
(1) Dust collection adapter (for 1-1/4'' O.D. vacuum hoses)
(3) Hex wrenches (5/32'', 1/8'', 3/16'')
(1) Owner's manual
| Brand | Kreg |
|---|---|
| Manufacturer Part Number | KLTJ100 |
| Weight | 5.80 |
| Tech Spec |
|
| Unit of Measure | Each |
